As the demand for smarter thermal management and energy savings continues to rise, DC fans are increasingly replacing traditional AC fans—enhancing system stability and extending the lifespan of critical components. This article explores the key advantages of DC fans, their diverse applications, and why they are becoming the preferred choice in modern engineering designs.

What is a DC Fan ?

A DC fan—short for Direct Current fan—is a cooling device powered by direct current electricity. Commonly designed to operate at 5V, 12V, or 24V, it delivers controlled airflow to manage heat and maintain optimal operating temperatures. Unlike AC fans that depend on mains electricity, DC fans run on low-voltage power sources, making them inherently safer and easier to integrate into compact, mobile, or sensitive electronic systems.

At its core, a DC fan uses a DC motor to rotate its blades, creating a consistent flow of air for cooling or ventilation. Valued for their energy efficiency, quiet performance, and precise speed control, DC fans play a critical role across industries—from consumer electronics and industrial automation to automotive electronics and household appliances.

Want to reduce fan noise? Check out our guide on How to Make a DC Fan Quieter for practical tips and proven solutions.

How Does a DC Motor Fan Work ?

Power Source

DC motor fans are driven by low-voltage direct current, most often 5V, 12V, or 24V, supplied by batteries, AC-to-DC adapters, solar panels, or integrated device circuits. Operating at low voltage not only enhances electrical safety but also allows seamless integration into devices that require stable, reliable, and compact cooling solutions.

Motor Mechanism

The heart of the DC fan is its DC motor, which converts electrical energy into mechanical rotation. When current passes through the motor’s windings, it generates a magnetic field that interacts with permanent magnets, causing the rotor to spin.

Many modern DC fans use brushless DC motors (BLDC). These replace mechanical brushes with electronic commutation, significantly reducing friction, boosting efficiency, lowering electrical noise, and extending operational lifespan.

Airflow Generation

As the motor turns, it drives the fan blades—crafted with precisely engineered aerodynamic profiles—to move air efficiently while minimizing turbulence and noise. Performance is influenced by factors such as blade pitch, curvature, and rotation speed. By adjusting these parameters, manufacturers can design fans tailored for specific needs, from high-volume airflow in open environments to strong static pressure in enclosed or high-resistance systems.

Types of DC Cooling Fans

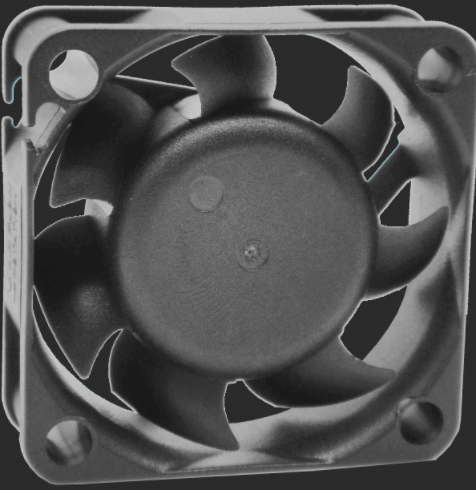

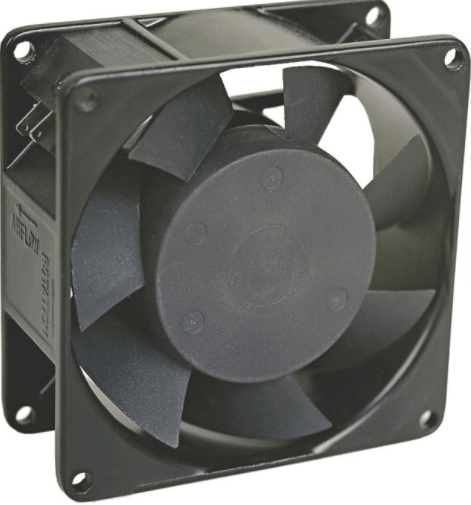

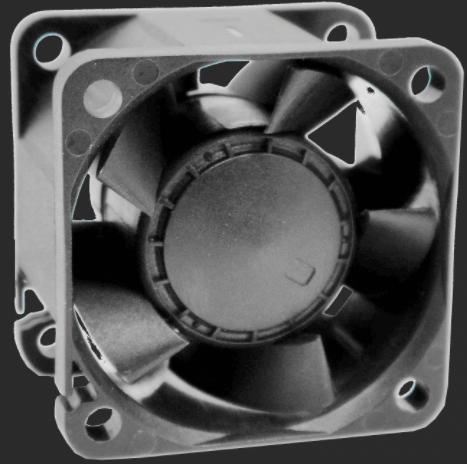

Axial DC Fans

An axial DC fan directs airflow parallel to its rotational axis, meaning the intake and exhaust are aligned in a straight path. It uses propeller-style blades designed to maximize airflow volume rather than static pressure, enabling it to move large amounts of air efficiently in low-resistance conditions. However, this design is less effective in setups where air must pass through dense filters, heat sinks, or other restrictive elements. For open or lightly obstructed environments where high ventilation rates are required, axial DC fans are often the most cost-effective and energy-efficient choice.

Typical Uses: Cooling PC cases and servers, ventilating household appliances, and free-air cooling for electronics enclosures.

Centrifugal DC Fans / Blowers

A centrifugal DC fan draws air into the center hub of a radial impeller and forces it outward before redirecting it at a 90-degree angle from the intake. The impeller’s curved blades act like paddles, accelerating airflow and producing high static pressure. This makes the design ideal for driving air through duct systems, restrictive filters, or compact heat exchangers, where overcoming resistance is essential. Its controlled and directional output also makes it well-suited for precision cooling in confined spaces.

Typical Uses: Air movement in HVAC systems, temperature control in sealed electrical cabinets, and targeted airflow for industrial machinery.

Crossflow DC Fans

A crossflow DC fan pushes air uniformly across the entire length of a cylindrical impeller, generating a broad, consistent “air curtain” at the outlet. This airflow pattern offers even cooling coverage across wide surfaces, making it preferable in applications where balance and distribution are more important than sheer airflow force. While it cannot match the static pressure of centrifugal designs, its geometry supports low-noise, low-turbulence operation, making it valuable for noise-sensitive or aesthetic-focused systems.

Typical Uses: Air conditioners, electronics with wide heat-dissipation zones, and display cabinets requiring steady, evenly distributed airflow.

Key Advantages of DC Cooling Fans

Energy Efficiency

Compared with many small AC shaded-pole motors, DC cooling fans—particularly those using brushless DC (BLDC) designs—achieve higher efficiency. Electronic commutation avoids the mechanical losses and sparking of traditional brushes, cutting copper and iron losses so more input power becomes usable airflow.

They also follow fan affinity principles: even a slight reduction in rotational speed, achieved through PWM control or voltage adjustment, can dramatically cut power draw (as power demand roughly follows the cube of speed). This enables substantial energy savings without compromising essential cooling.

Furthermore, DC fans can run on demand, automatically adjusting speed to match temperature or workload. This targeted operation reduces unnecessary run time, limits dust accumulation, and prolongs the service life of both the fan and surrounding components.

Low Noise Operation

A well-designed DC cooling fan produces minimal noise thanks to precise motor control and aerodynamic blade optimization, which reduce turbulence and tonal peaks. BLDC units driven by sinusoidal or field-oriented control (FOC) generate smoother rotation and lower vibration.

High-frequency PWM control—beyond human hearing—removes the typical “buzz” while maintaining fine speed adjustments.

When integrated into equipment, additional measures such as vibration-isolating mounts, gradual ramp-up profiles, and carefully shaped airflow paths further limit acoustic output, making these fans ideal for sound-sensitive environments.

Speed Control Capability

DC fans offer flexible speed regulation options. Two-wire models allow direct voltage-based control, three-wire versions add tachometer output for RPM monitoring, and four-wire designs include standardized PWM input with tach feedback for precise closed-loop management.

Temperature-based PWM mapping—such as gradually increasing fan speed between 30 °C and 60 °C—helps avoid abrupt RPM changes, smooths noise transitions, and keeps cooling consistent.

Modern models may also provide status reporting and fault alerts, such as under-speed or stall alarms, which integrate easily into smart diagnostics and monitoring systems.

Long Service Life

Longevity depends on bearing choice and protective features. Ball bearings handle high heat and any orientation, while fluid dynamic or magnetic bearings reduce friction, enabling quieter and longer-lasting operation.

Electronics that offer soft-start sequencing, locked-rotor protection, and over-current safeguards help prevent overheating and reduce mechanical strain during abnormal conditions.

For challenging environments, enhancements like sealed bearings, conformal-coated electronics, and IP-rated housings protect against dust, moisture, and splashes, ensuring reliable long-term use.

Safety

Operating at low voltages (commonly 5V, 12V, or 24V), DC fans reduce electric shock risk and simplify compliance compared to mains-powered AC fans.

They often include safety features such as reverse-polarity protection, flame-retardant housings (e.g., UL94V-0 materials), and integrated blade guards to prevent accidental contact.

Their electronically commutated drives also tend to emit less electromagnetic interference (EMI), reducing the chance of disrupting nearby sensitive electronics, radios, or medical devices.

Common Applications of DC Cooler Fans

Consumer Electronics

Slim axial fans and compact blowers in laptops, desktops, and gaming systems handle heat from CPUs, GPUs, and VRMs. They run quietly at idle but ramp up under heavy load, with dust-resistant bearings for longevity.

Networking devices like routers, modems, and set-top boxes use low-airflow DC cooler fans for continuous cooling in confined spaces. Compatibility with 5V/12V power rails and PWM control makes integration straightforward.

In small appliances and smart home devices, vibration damping and low-speed operation help maintain quiet performance in living areas.

Industrial Equipment

In control cabinets and automation setups, 24V DC is the standard supply. Centrifugal blowers are used with ducts or filters, while axial fans suit free-air cooling. Protective coatings, wide temperature tolerance, and tach outputs assist in preventive maintenance.

CNC machines, power supplies, and test racks require high static pressure to push air through dense heat sinks. Tach feedback can be linked to PLCs for automated fault detection.

Edge servers and industrial gateways benefit from dust-tolerant designs, removable filters, and controlled speed ramps, which extend maintenance intervals.

Automotive Systems

For LED lighting, infotainment units, and ADAS modules, fans must fit tight spaces, endure high ambient temperatures, and run from 12V rails. Low-turbulence blades and vibration control help maintain cabin comfort.

In EV battery packs and power electronics, PWM-controlled fans deliver cooling based on real-time thermal sensor data, ensuring efficient airflow only when needed.

Automotive-grade fans are engineered for wide temperature ranges, voltage spike resistance, and sealed bearings to ensure durability in varied environments.

Medical Devices

Equipment such as patient monitors, analyzers, and ventilators requires extremely quiet cooling. BLDC fans with high-frequency PWM and fluid dynamic bearings meet strict acoustic targets.

Diagnostic and imaging systems rely on steady, low-vibration airflow to protect measurement accuracy. Tach feedback can integrate with safety systems to prevent overheating.

Compliance-oriented designs use low-EMI electronics, flame-retardant materials, and built-in fault detection to meet regulatory requirements while ensuring uninterrupted operation.

What’s the Difference Between an AC Fan and a DC Fan ?

Learn more
https://www.yccfan.com/articledetail/518.html

https://www.yccfan.com/articledetail/510.html

https://www.yccfan.com/articledetail/520.html

Conclusion

In summary, DC fans combine energy efficiency, quiet operation, precise speed control, long lifespan, and safety advantages to deliver reliable cooling solutions for a wide range of applications.
