Designed with low noise operation, long-life bearing options, PWM speed control, and moisture protection to support stable cooling in home appliance applications.
A compact mini cooling fan for electronics solution designed for home appliance control boards, using a small dc fan to support stable airflow in limited internal spaces.
Background
A home appliance manufacturer was developing a compact smart appliance with an internal control board, power module, and sensor system. As the product structure became thinner and more integrated, heat from the electronic components was difficult to release naturally. The customer needed a small cooling fan that could fit into a narrow internal space without increasing noise or affecting the appliance structure.
Challenge
The main challenge was the limited space around the control board. A standard fan would take up too much room, while passive cooling alone could not provide enough airflow. The appliance also required quiet operation because it would be used in a home environment. For this reason, the fan needed to be compact, low-noise, and reliable for long-term operation.
YCCFAN Solution
YCCFAN recommended a compact micro cooling fan design based on the customer’s internal structure and airflow direction. For this case, a 30mm fan with a 5v dc fan configuration was selected to match the low-power electronic control board. The solution helped direct airflow across the heat-generating components while keeping the overall structure compact. Wire length, connector type, speed, and bearing options could also be customized according to the customer’s assembly requirements.
Results
With the small fan integrated into the control board area, the appliance achieved more stable internal airflow and improved thermal performance. The compact fan design also helped the customer keep the product structure slim while supporting reliable operation of the electronic components.
Need a compact cooling solution for your appliance electronics? YCCFAN can support custom small DC fan solutions for control boards, power modules, and compact internal electronic systems.
Contact YCCFAN
An induction cooker fan provides focused airflow for the control board and power module during high-power heating. Its compact structure helps remove concentrated heat in a narrow space, reducing thermal stress on electronic components.
An oven cooling fan helps move hot air away from sensors, control systems, and nearby electronic parts. Its heat-resistant cooling design supports stable airflow around high-temperature zones and helps reduce heat buildup inside the appliance.

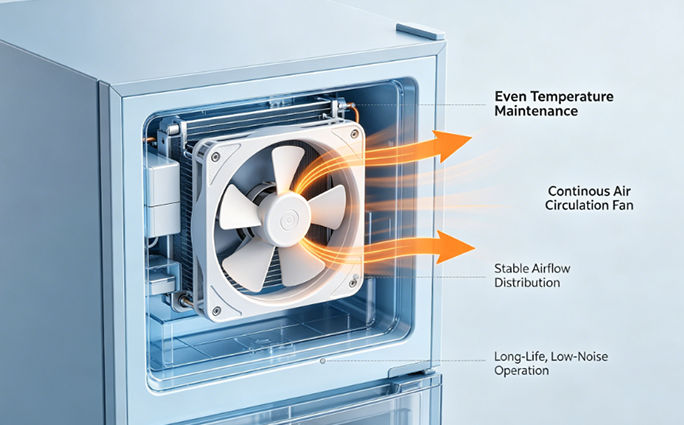

A refrigerator fan supports continuous air circulation and helps maintain stable temperature distribution inside the refrigeration system. Its long-life, low-noise structure is suitable for long operating cycles and helps improve overall cooling consistency.
A dishwasher fan helps manage heat and moisture around internal electronic areas. Its moisture-resistant structure supports stable operation in warm and humid environments, helping reduce condensation impact on control components.
A TV cooling fan provides slim and quiet airflow for power boards, display modules, and internal electronic components. Its thin, compact structure fits limited display spaces and helps prevent heat buildup behind the screen.
A router cooling fan delivers steady airflow to chips, power components, and communication modules during continuous operation. Its small and quiet design fits compact networking devices and helps prevent performance drops caused by heat buildup.
Keep your systems running cool and stable with fans that are compact, quiet, and smart. Designed to meet the cooling needs of many industries, they help protect key parts and improve performance in any setting.
SIZE: 120x120x38mm
DIELECTRIC STRENGTH:
1mA max,at 2000 VAC 1minute(between frame and terminal)
DIELECTRIC STRENGTH:
1mA max,at 2000 VAC 1minute(between frame and terminal)
SIZE:60x60x25mm
OPERATING TEMPERATURE:
Ball bearing -10℃ to +70℃
DIELECTRIC STRENGTH:
5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
SIZE:120x120x25mm
OPERATING TEMPERATURE:
Ball bearing -10℃ to +70℃
DIELECTRIC STRENGTH:
5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
SIZE:92x92x25mm
OPERATING TEMPERATURE:
Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
DIELECTRIC STRENGTH:
5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
Micro Cooling Fan FAQs for Home Appliance Electronics
Q1: What type of fan is suitable for home appliance electronics?
A compact small cooling fan is suitable
for home appliance electronics, especially when the internal space is limited. It should
provide stable airflow, low noise performance, and reliable operation for control boards,
power modules, and internal electronic components.
Q2: Should a home appliance design use a 5v dc fan, 12v dc fan, or 24v dc fan?
A 5v dc fan is suitable for low-power
electronic modules and compact control boards. A 12v dc fan is commonly used for many
appliance control systems, while a 24v dc fan can be selected for larger structures or
customized cooling requirements.
Q3: What size fan is commonly used for compact home appliance electronics?
A 30mm fan is suitable for very narrow
spaces and small control boards. A 50mm fan can provide more airflow for power modules or
electronic assemblies, while an 80mm fan may be used when the appliance structure allows
more installation space.
Q4: How does a low noise fan help home appliance electronics?
A low noise fan helps remove heat from
electronic components while keeping operation quieter. This is useful for home appliance
electronics where stable cooling is needed without adding noticeable running noise.
Q5: What is the benefit of a PWM fan in home appliance electronics?
A PWM fan allows the system to
adjust fan speed based on temperature or operating conditions. This helps balance
cooling performance, noise level, and power consumption in smart appliance designs.
