DC2008 C05/C12 DC Cooling Fan
A 20×20×8mm DC cooling fan with selectable speed levels and optional control functions, built for flexible integration into small electronic cooling systems.
DC2008 delivers up to 1.35CFM airflow and 6.15mmH₂O static pressure in a compact 20mm frame, making it suitable for narrow airflow paths and higher-density internal layouts.
Rated Voltage: 5VDC / 12VDC
Size: 20×20×8mm
Max Airflow: 1.35CFM / 0.038m³/min
Max Static Pressure: 6.15mmH₂O / 60.3Pa
Rated Speed: Up to 15000RPM
Key Specifications of DC2006 DC Fan
Review DC2006 fan specifications across available models, including speed, airflow, static pressure, noise, current, and weight, to choose the right version for compact cooling designs.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH2008C05 | C | 5 | 0.07 | 15000 | 1.35 | 6.15 | 20.60 | 3.0 |
| YDM2008C05 | C | 5 | 0.05 | 10000 | 0.90 | 2.74 | 11.80 | 3.0 |
| YDL2008C05 | C | 5 | 0.02 | 6000 | 0.54 | 0.99 | 7.20 | 3.0 |
| YDH2008C12 | C | 12 | 0.05 | 15000 | 1.35 | 6.15 | 20.60 | 3.0 |
| YDM2008C12 | C | 12 | 0.03 | 10000 | 0.90 | 2.74 | 11.80 | 3.0 |
| YDL2008C12 | C | 12 | 0.02 | 6000 | 0.54 | 0.99 | 7.20 | 3.0 |
DC2008 DC Cooling Fan Advantages
Designed for compact electronic cooling, DC2008 combines a small frame, stronger airflow, higher static pressure, and optional control functions for flexible device integration.
20×20×8mm Compact Frame
DC2008 keeps a compact 20mm footprint while using an 8mm thickness to support stronger airflow performance in small electronic devices.
Up to 1.35CFM Airflow
With airflow up to 1.35CFM, DC2008 can provide active cooling for compact modules, board-level components, and small internal heat sources.
High Static Pressure Performance
DC2008 reaches up to 6.15mmH₂O static pressure, helping push airflow through narrow air paths, dense components, and restricted internal spaces.
Optional Control Functions
With optional FG, RD, PWM, auto restart, and polarity protection, DC2008 can support speed control, signal feedback, fault detection, and safer fan operation in customized electronic systems.

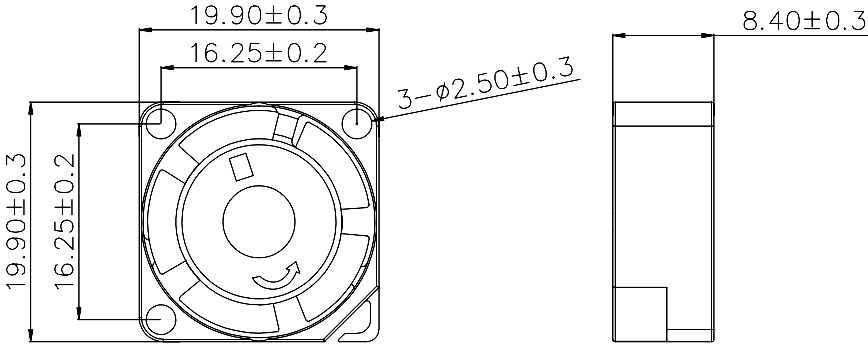

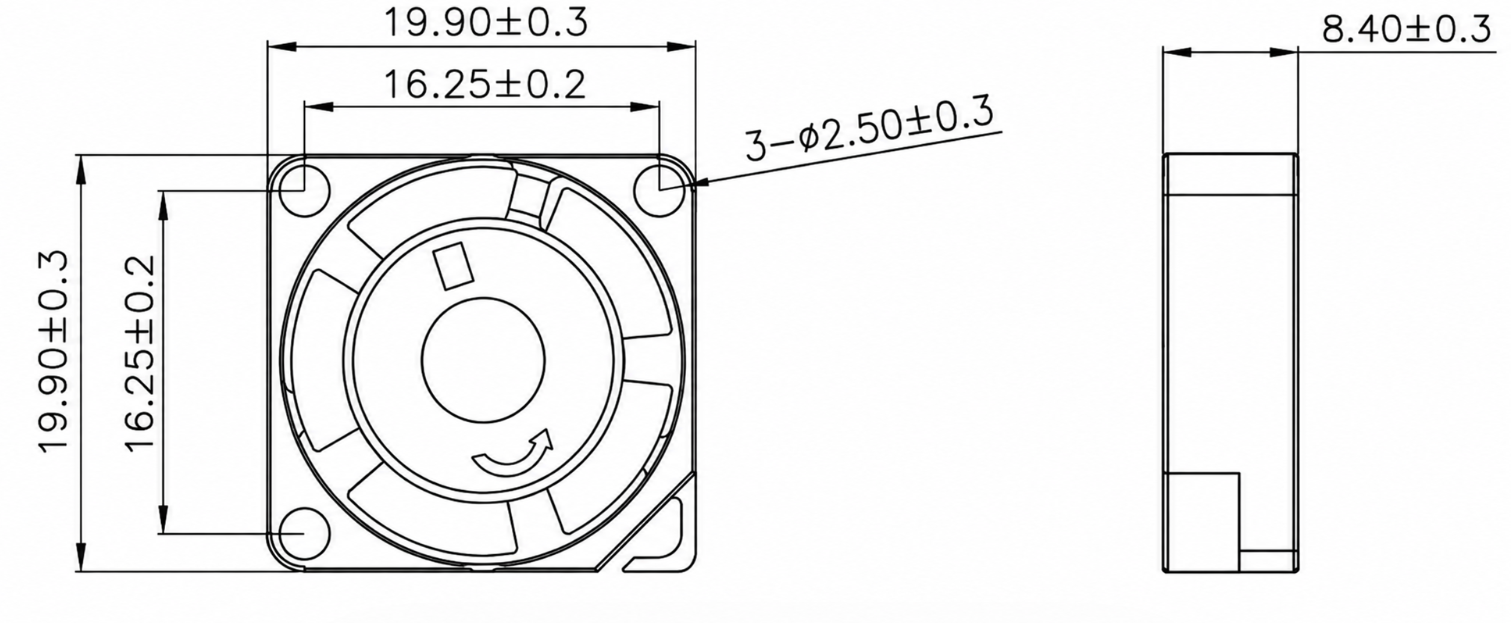

YCCFAN DC2008 Small DC Fan Product Overview
Understand the key design details of DC2008, from compact structure and material safety to model options and control functions.
DC2008 is a compact DC cooling fan developed for small electronic systems that need stronger airflow support within limited installation space. Compared with thinner micro fan structures, its 20×20×8mm frame provides more room for airflow performance while still maintaining a compact mounting footprint.
The fan uses glass fiber reinforced plastic with PBT UL94V-0 flame-retardant impeller and housing materials, supporting electronic products where material safety and internal component protection are important. With optional FG, RD, PWM, auto restart, and polarity protection functions, DC2008 can be adapted to different control systems, monitoring needs, and OEM/ODM cooling projects.

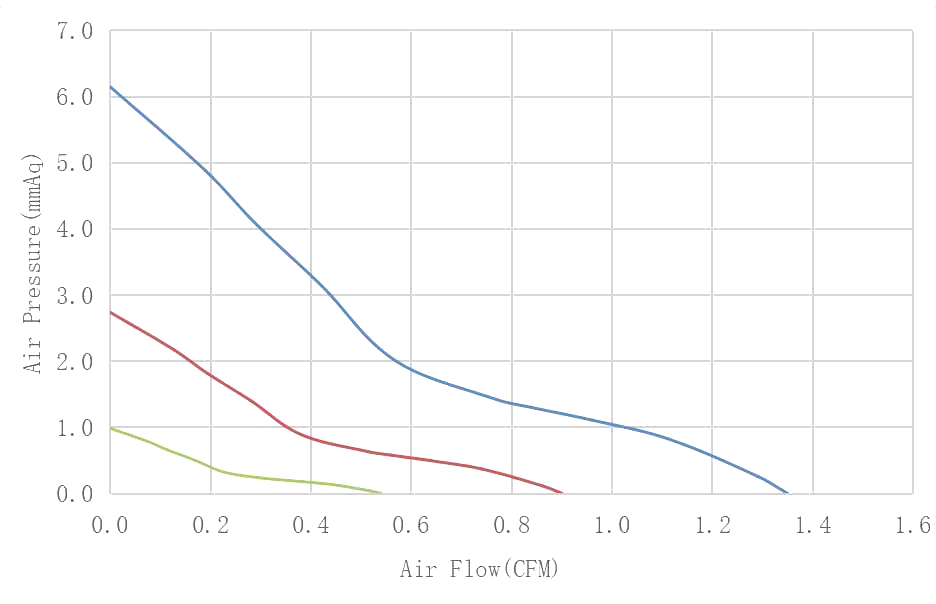

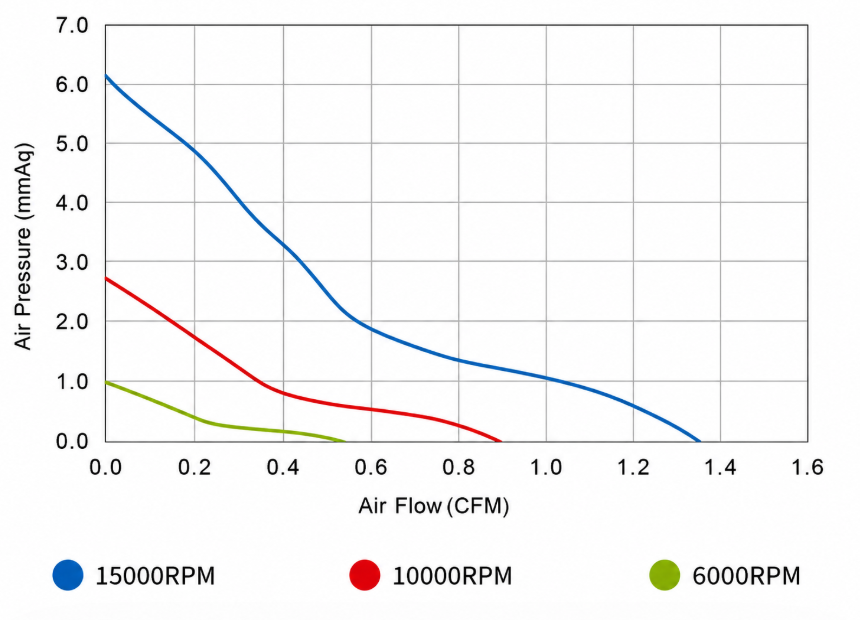

DC2008 Airflow & Static Pressure Performance Curve
Compare DC2008 airflow and static pressure performance across different speed options to understand how each version supports compact cooling designs and restricted internal airflow paths.
DC2008 DC Cooler Fan Applications for Higher-Density Compact Cooling
DC2008 dc cooler fan is designed for compact electronic systems that require stronger airflow, higher static pressure, and optional control functions in limited internal spaces.
Get Cooling Support

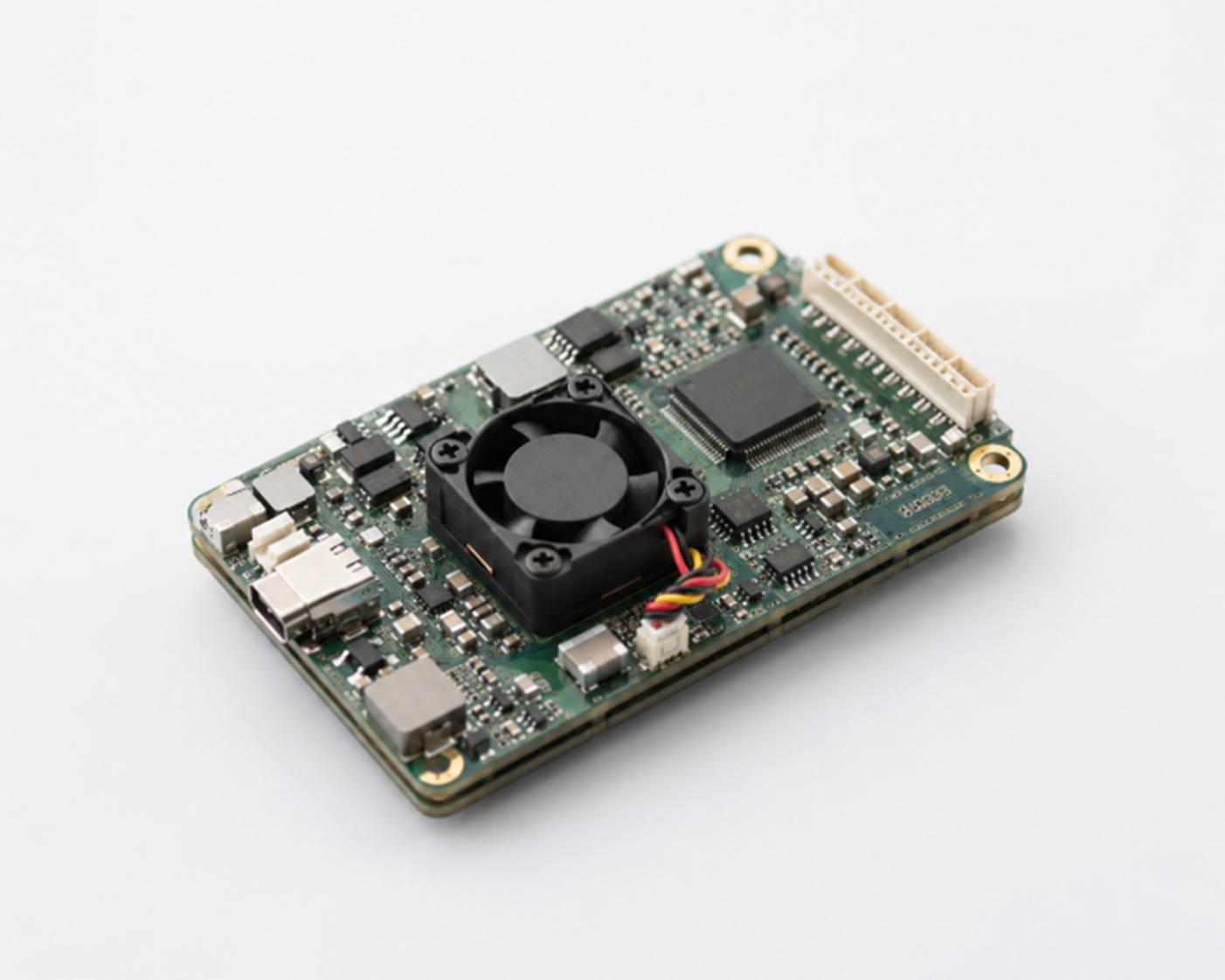

High-Density PCB Cooling
DC2008 is suitable for densely arranged PCB layouts where chips, drivers, power ICs, and other heat sources are placed close together. Its higher airflow and static pressure help improve localized cooling in compact board-level designs.

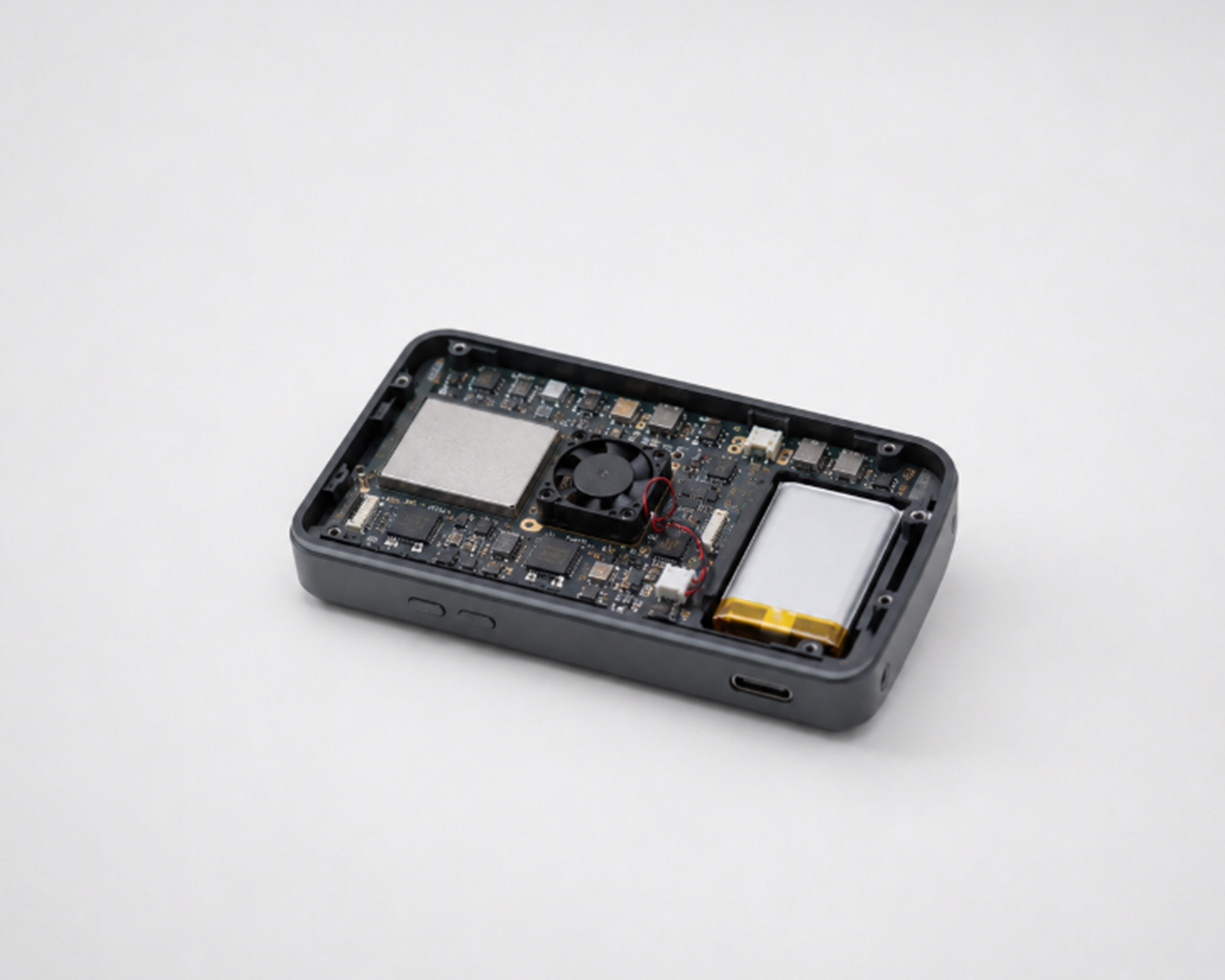

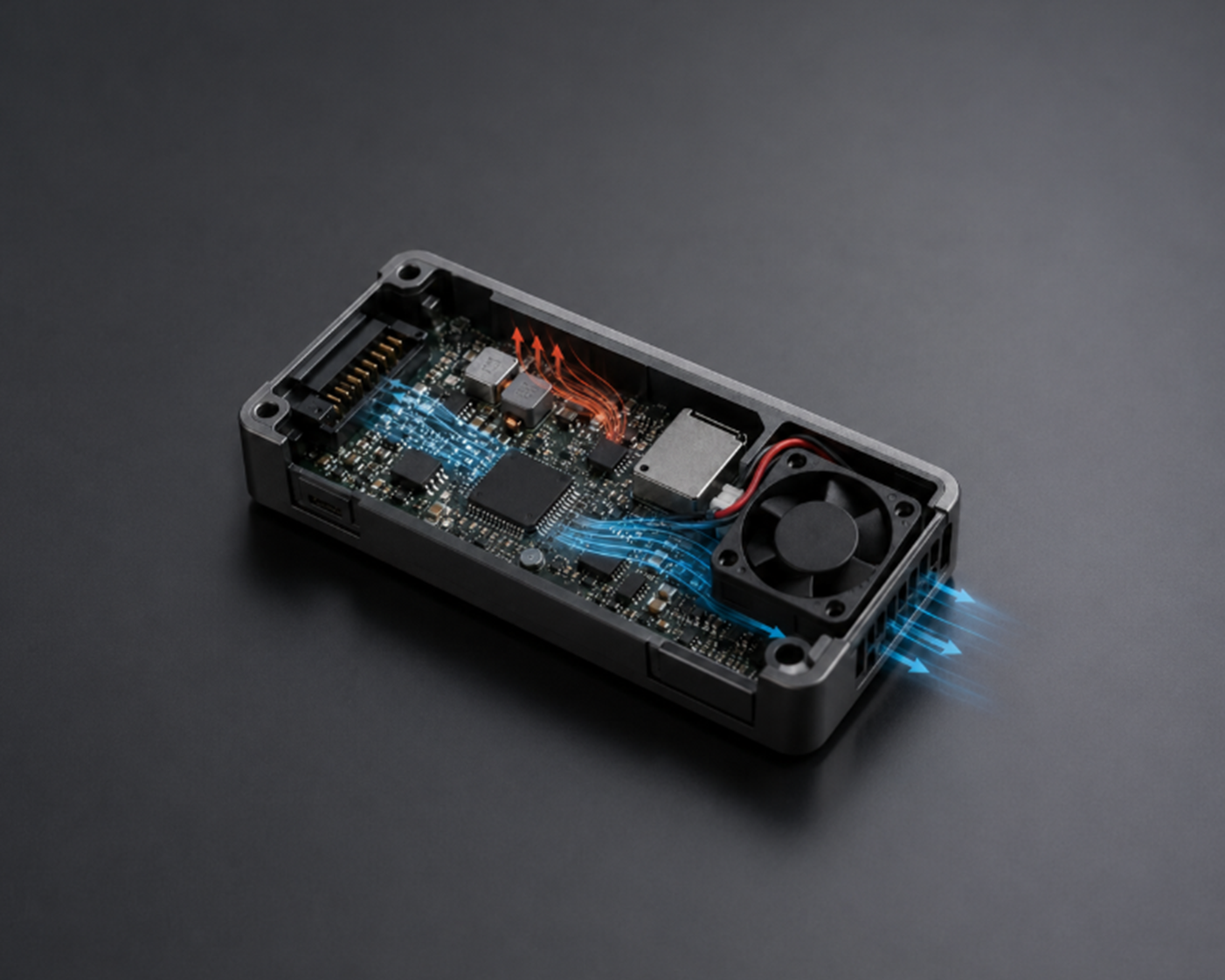

Compact Devices with Restricted Air Paths
With up to 6.15mmH₂O static pressure, DC2008 can support cooling in devices with narrow vents, dense internal components, or limited airflow channels where stronger pressure is needed to move air through the system.

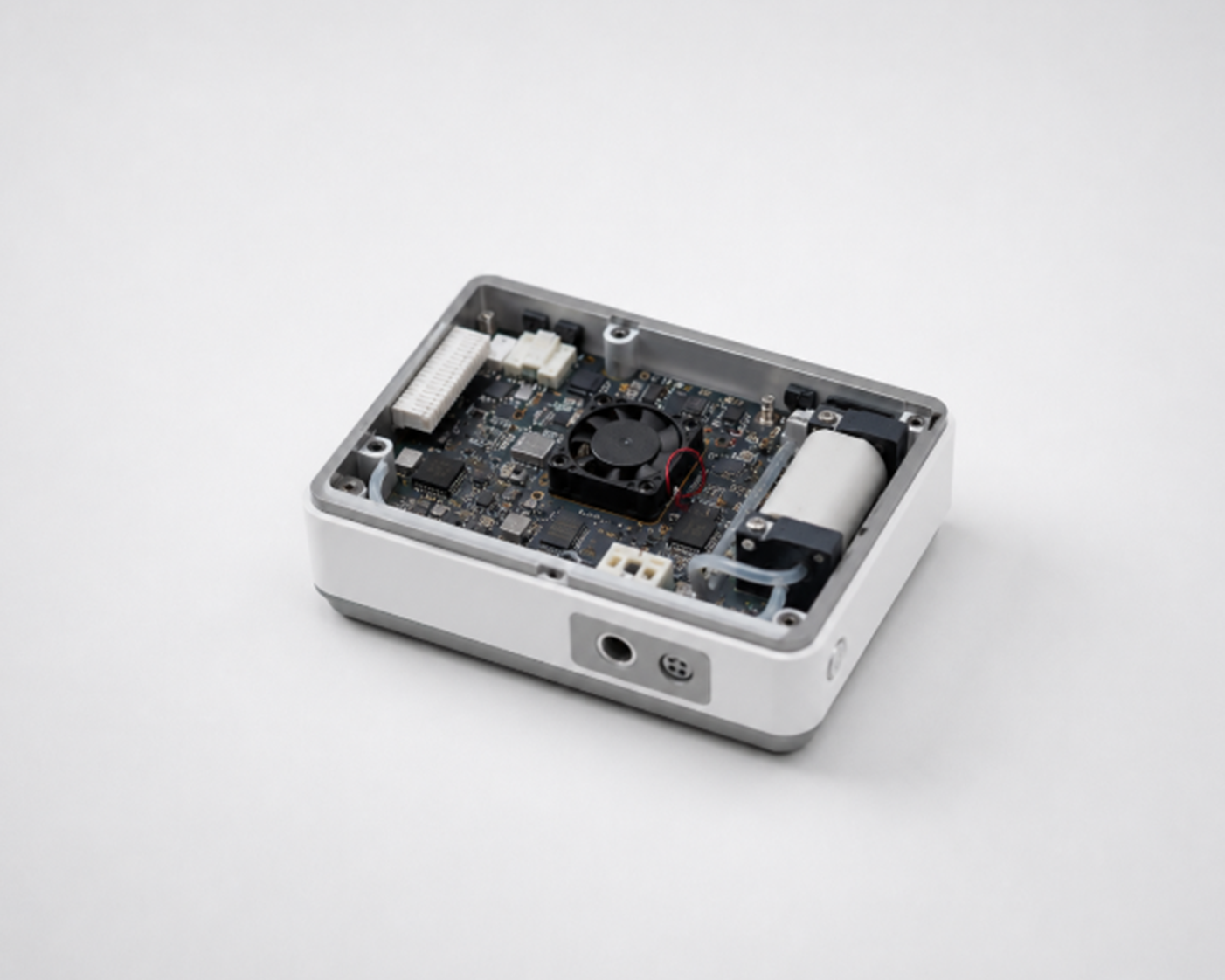

Smart Control and Monitoring Systems
DC2008 supports optional FG, RD, and PWM functions, making it suitable for electronic systems that require speed feedback, fault detection, or fan speed control. It can be used in devices where fan status monitoring is part of the thermal design.

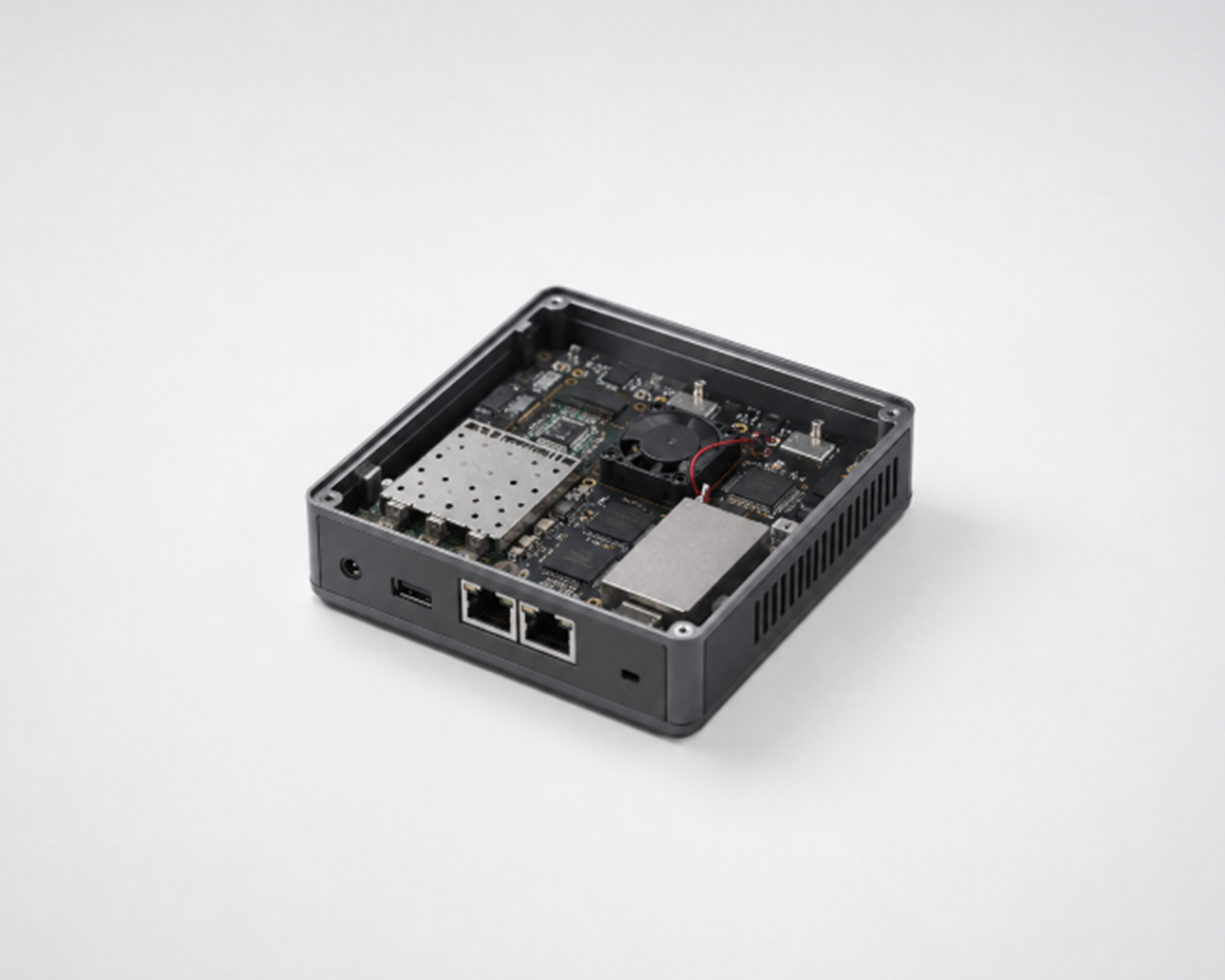

Mini Communication and Network Terminals
DC2008 can be used in compact routers, communication modules, network terminals, and signal devices that operate for long periods inside confined enclosures. Its airflow and pressure performance help support more stable cooling for continuously working components.
Compact Equipment Requiring Safer Fan Operation
With optional auto restart and polarity protection, DC2008 is suitable for compact electronic products where safer fan operation and system protection are important, especially in customized OEM/ODM cooling designs.
DC 20×20×8mm Cooling Fan Video Showcase
Watch the DC2008 cooling fan in action and see its compact structure, smooth operation, and airflow performance for small electronic cooling applications.
Watch the DC2008 cooling fan in action and see its compact structure, smooth operation, and airflow performance for small electronic cooling applications.
FAQs About DC2008 DC Fan
A: The DC2008 DC cooling fan is used for compact electronic devices that require efficient airflow and high static pressure in limited spaces, such as PCB boards, communication modules, and small network devices.
A: With a compact 20×20×8mm structure and up to 6.15mmH₂O static pressure, DC2008 can effectively push airflow through dense components and narrow internal airflow paths.
A: Yes, DC2008 supports optional PWM speed control, FG, RD, and protection functions, allowing precise airflow adjustment and system monitoring in customized electronic applications.
A: DC2008 delivers up to 1.35CFM airflow and 6.15mmH₂O static pressure, making it suitable for compact cooling systems that require stable thermal performance.
A: Yes, DC2008 micro fan is widely used in routers, communication modules, and small network terminals where continuous operation and stable cooling are required.
A: DC2008 uses UL94V-0 flame-retardant PBT material with glass fiber reinforcement, ensuring high safety, durability, and stability for electronic applications.
