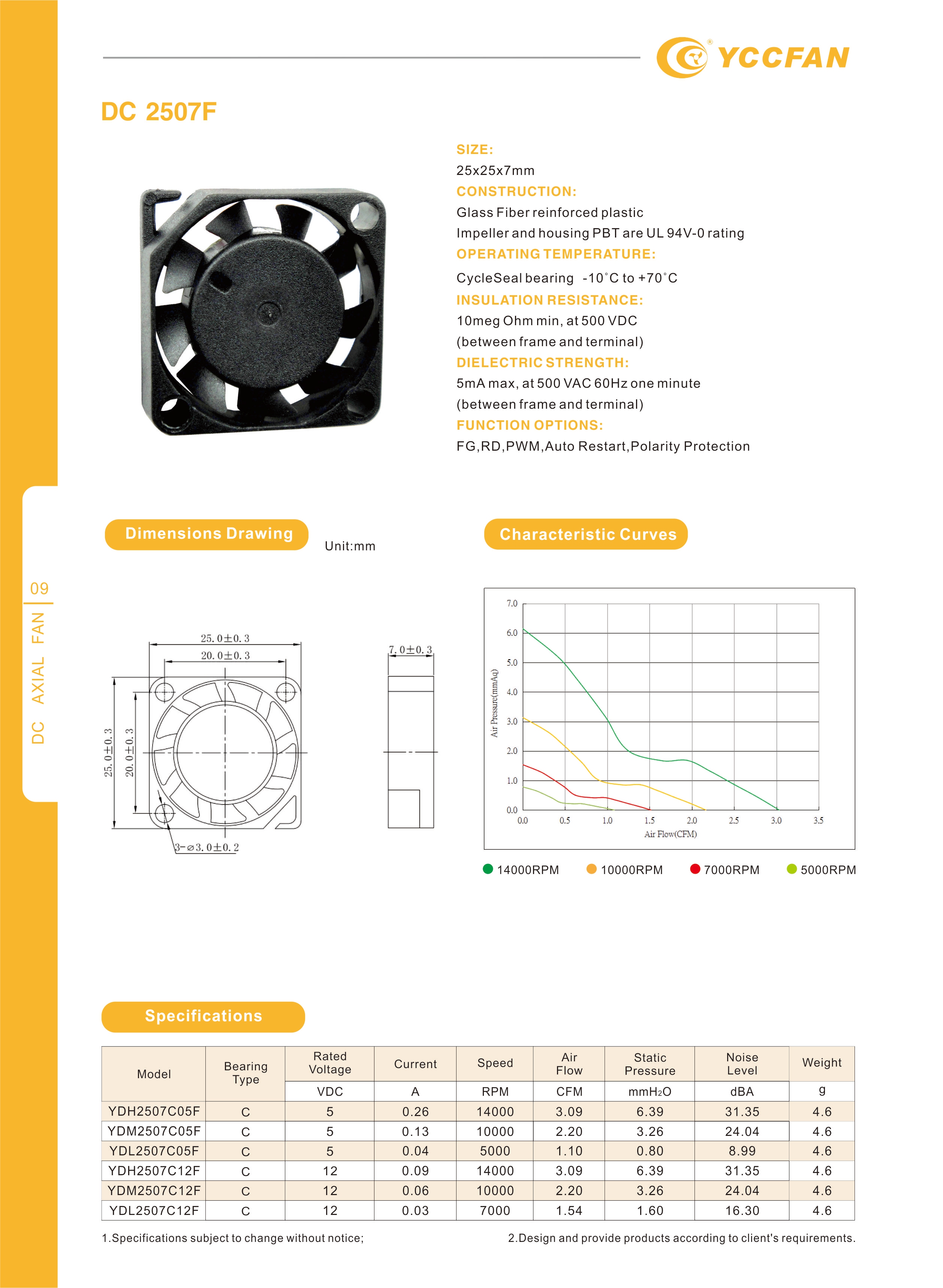

DC2507 C05F/C12F 25×25×7mm DC Cooling Fan
A slim 25mm DC fan built for compact devices that need more airflow than 20mm micro fans while still keeping a low 7mm profile.
DC2507 provides a larger 25mm airflow area with only 7mm thickness, making it suitable for compact electronics that need a step up from ultra-small micro fans. Its performance is useful for small enclosures, narrow PCB layouts, and devices where airflow needs to be improved without increasing fan depth too much.
Rated Voltage: 5VDC / 12VDC

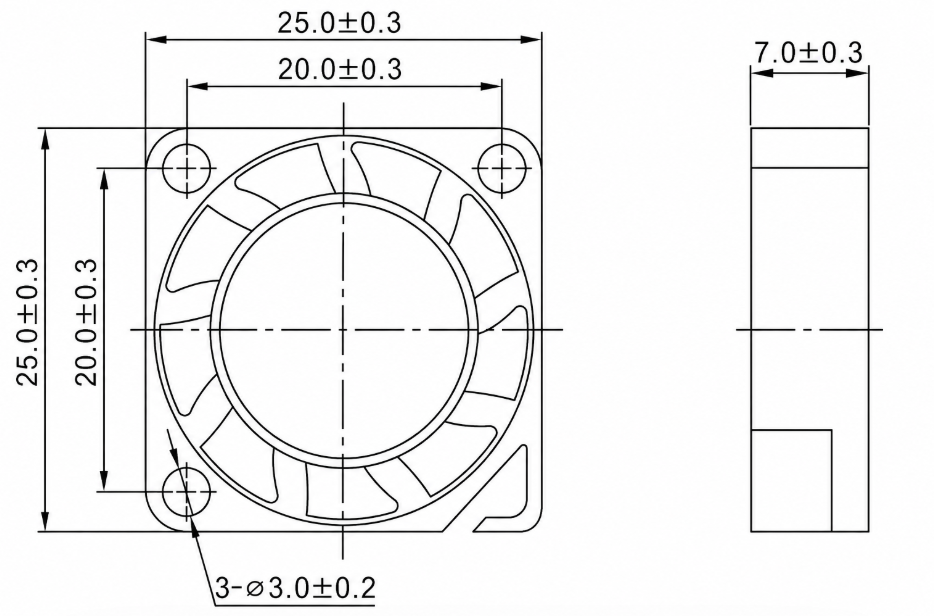

Size: 25×25×7mm
Max Airflow: 3.09CFM / 0.088m³/min
Max Static Pressure: 6.39mmH₂O / 62.7Pa
Rated Speed: Up to 14000RPM
Key Specifications of DC2507 DC Fan
Compare DC2507 models by speed, airflow, pressure, current, and noise to select a slim 25mm cooling fan for compact electronics.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH2507C05F | C | 5 | 0.26 | 14000 | 3.09 | 6.39 | 31.35 | 4.6 |
| YDM2507C05F | C | 5 | 0.13 | 10000 | 2.20 | 3.26 | 24.04 | 4.6 |
| YDL2507C05F | C | 5 | 0.04 | 50000 | 1.10 | 0.80 | 8.99 | 4.6 |
| YDH2507C12F | C | 12 | 0.09 | 14000 | 3.09 | 6.39 | 31.35 | 4.6 |
| YDM2507C12F | C | 12 | 0.06 | 10000 | 2.20 | 3.26 | 24.04 | 4.6 |
| YDL2507C12F | C | 12 | 0.03 | 7000 | 1.54 | 1.60 | 16.30 | 4.6 |
DC2507 Slim DC Cooling Fan Advantages
DC2507 focuses on low-profile 25mm cooling, giving compact devices stronger airflow coverage than smaller micro fans without moving to a thick-frame structure.
7mm Slim 25mm Frame
With a 25×25×7mm size, DC2507 offers a wider airflow area than 20mm fans while keeping a thin profile for height-limited installation.
Higher Airflow Than Smaller Micro Fans
Up to 3.09CFM airflow makes DC2507 suitable when ultra-small fans cannot provide enough air volume for compact electronic cooling.
Pressure Support in a Thin Body
With up to 6.39mmH₂O static pressure, DC2507 can help move air through small vents and tighter internal structures.
Compact OEM Cooling Flexibility
Optional FG, RD, PWM, auto restart, and polarity protection allow DC2507 to fit projects that need basic fan control or protection features.

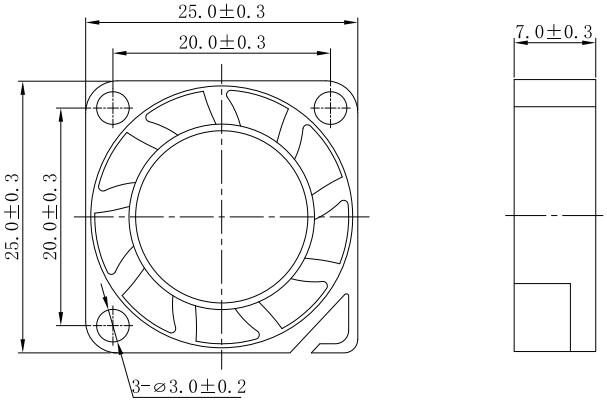

YCCFAN DC2507 Product Overview
DC2507 is a compact 25×25×7mm DC axial cooling fan designed for efficient thermal management in space-constrained electronic devices and high-density system architectures.
Built on a standard 25mm micro fan platform, it features an optimized airflow channel and impeller structure to deliver stable airflow performance and improved static pressure within a reduced thickness design.

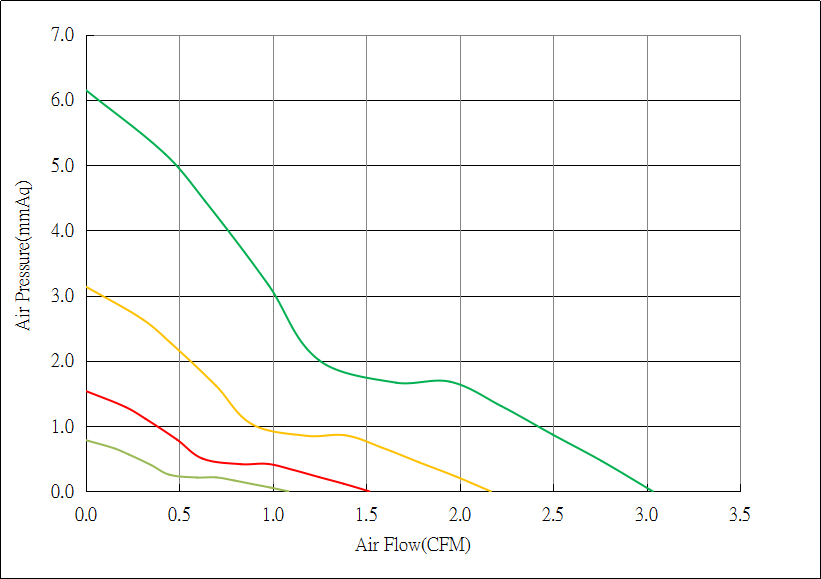

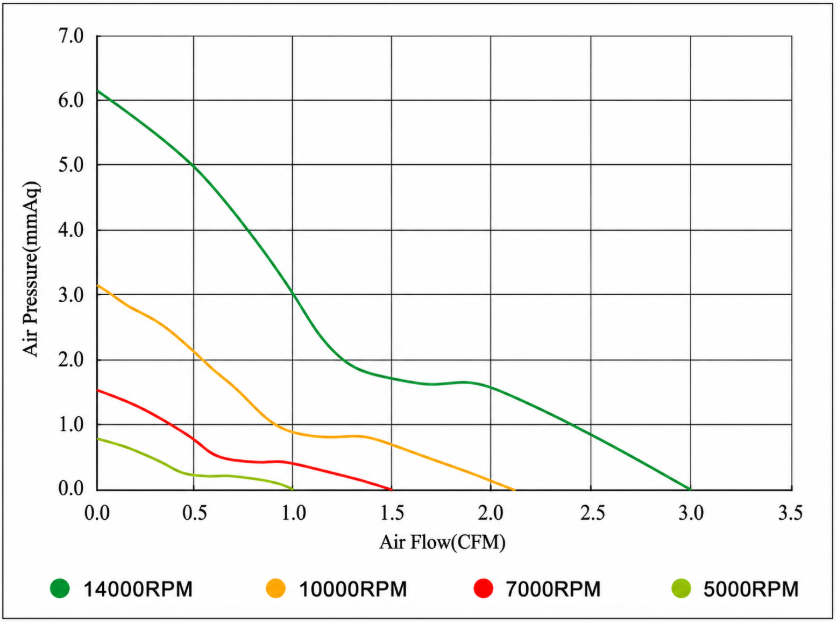

DC2507 DC Fan Airflow & Static Pressure Performance Curve
Use the DC2507 P-Q curve to compare how this slim 25mm fan performs across airflow demand, pressure resistance, and different speed levels.
DC2507 Cooling Fan Applications for Slim 25mm Cooling
Best suited for compact products that need more airflow than micro fans but cannot accept a thicker cooling fan.
Get Cooling Support
Low-Profile Electronic Enclosures
DC2507 fits compact housings where fan thickness is restricted but internal airflow still needs to be improved.
Compact PCB Cooling Areas
The slim 25mm frame can be placed near PCB heat sources where a larger fan would be difficult to install.
Small Power and Control Modules
DC2507 can help move air across small power sections or control units that need active airflow in limited space.
Thin Communication Devices
For compact signal or communication products, DC2507 offers a useful balance between low height and stronger airflow.
DC 25×25×7mm Cooling Fan Video Showcase
Watch DC2507 in operation to see its slim 25mm frame, compact mounting shape, and airflow performance for low-profile electronic cooling.
Watch DC2507 in operation to see its slim 25mm frame, compact mounting shape, and airflow performance for low-profile electronic cooling.
FAQs About DC2507 DC Cooling Fan
A: DC2507 is designed with a 25×25×7mm ultra-slim structure, allowing it to fit into extremely low-profile spaces where standard fans cannot be installed. Despite the thin body, its enlarged 25mm airflow area ensures sufficient cooling for compact electronics.
A: Unlike 20mm micro fans, DC2507 increases airflow surface area while maintaining a slim profile. This results in up to 3.09CFM airflow, improving heat distribution across wider PCB or enclosure areas.
A: Yes. DC2507 dc cooling fan achieves up to 6.39mmH₂O static pressure, allowing air to pass through narrow vents, dense PCB layouts, and partially blocked airflow channels.
A: A 25mm frame allows DC2507 small dc fan to move more air compared to smaller micro fans without increasing thickness. This makes it suitable for designs that need a balance between space limitation and airflow improvement.
A: DC2507 can be configured with PWM speed control, FG signal output, RD feedback, auto restart, and polarity protection, allowing integration into intelligent or monitored cooling systems.
A: DC2507 is preferred when the system has strict height limits but still requires improved airflow performance. Its 7mm slim profile makes it ideal for low-profile enclosures where thicker fans cannot be used.
