DC2510 X05/X12 25×25×10mm DC Cooling Fan
A 25mm DC fan with a 10mm frame depth and C/B bearing options, designed for compact devices that need balanced airflow, durability, and controlled cooling.
DC2510 is positioned as a more robust 25mm option than slim 7mm fans, offering bearing flexibility and stable airflow performance for compact devices. It is suitable for designs where the available depth is slightly larger and engineers need a more balanced fan choice instead of only pursuing ultra-thin installation.
Rated Voltage: 5VDC / 12VDC

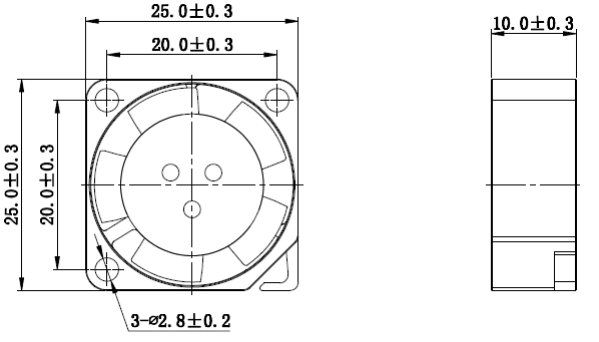

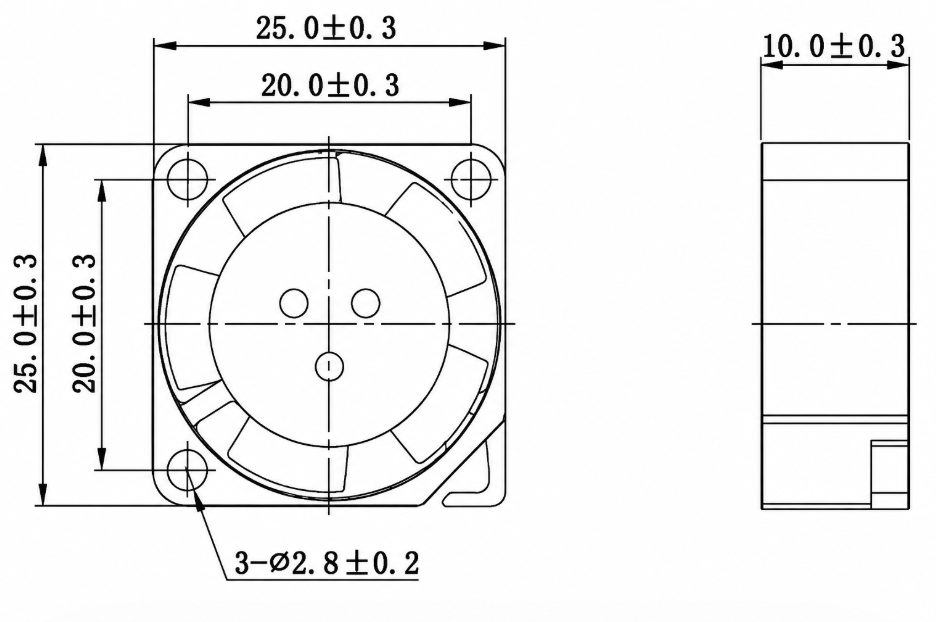

Size: 25×25×10mm
Max Airflow: 2.51CFM / 0.071m³/min
Max Static Pressure: 5.55mmH₂O / 54.4Pa
Rated Speed: Up to 13000RPM
Key Specifications of DC2510 DC Fan
Compare DC2510 fan models by bearing type, current, speed, airflow, pressure, and noise to choose a balanced 25mm DC fan.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH2510X05 | C or B | 5 | 0.11 | 13000 | 2.51 | 5.55 | 27.50 | 6.4 |
| YDM2510X05 | C or B | 5 | 0.09 | 10000 | 1.93 | 3.29 | 21.80 | 6.4 |
| YDL2510X05 | C or B | 5 | 0.05 | 7000 | 1.35 | 1.61 | 14.05 | 6.4 |
| YDH2510X12 | C or B | 12 | 0.07 | 13000 | 2.51 | 5.55 | 27.50 | 6.4 |
| YDM2510X12 | C or B | 12 | 0.05 | 10000 | 1.93 | 3.29 | 21.80 | 6.4 |
| YDL2510X12 | C or B | 12 | 0.03 | 7000 | 1.35 | 1.61 | 14.05 | 6.4 |
DC2510 Balanced 25mm Cooling Fan Advantages
DC2510 is built for applications that need a stronger structure than ultra-slim fans, with bearing flexibility and controlled performance in a compact 25mm format.
10mm Frame for Stable Fan Structure
The 25×25×10mm body gives DC2510 more structural depth than 7mm versions, helping support stable operation in compact cooling layouts.
C or B Bearing Options
Unlike some compact models with only one bearing type, DC2510 supports C or B bearing options for different lifetime, cost, and operating requirements.
Balanced Airflow and Noise
With up to 2.51CFM airflow and 27.50dBA noise at the high-speed version, DC2510 offers a practical balance for compact electronics.
Control Options for OEM Design
FG, RD, PWM, auto restart, and polarity protection options help DC2510 adapt to projects requiring monitoring, speed control, or safer operation.

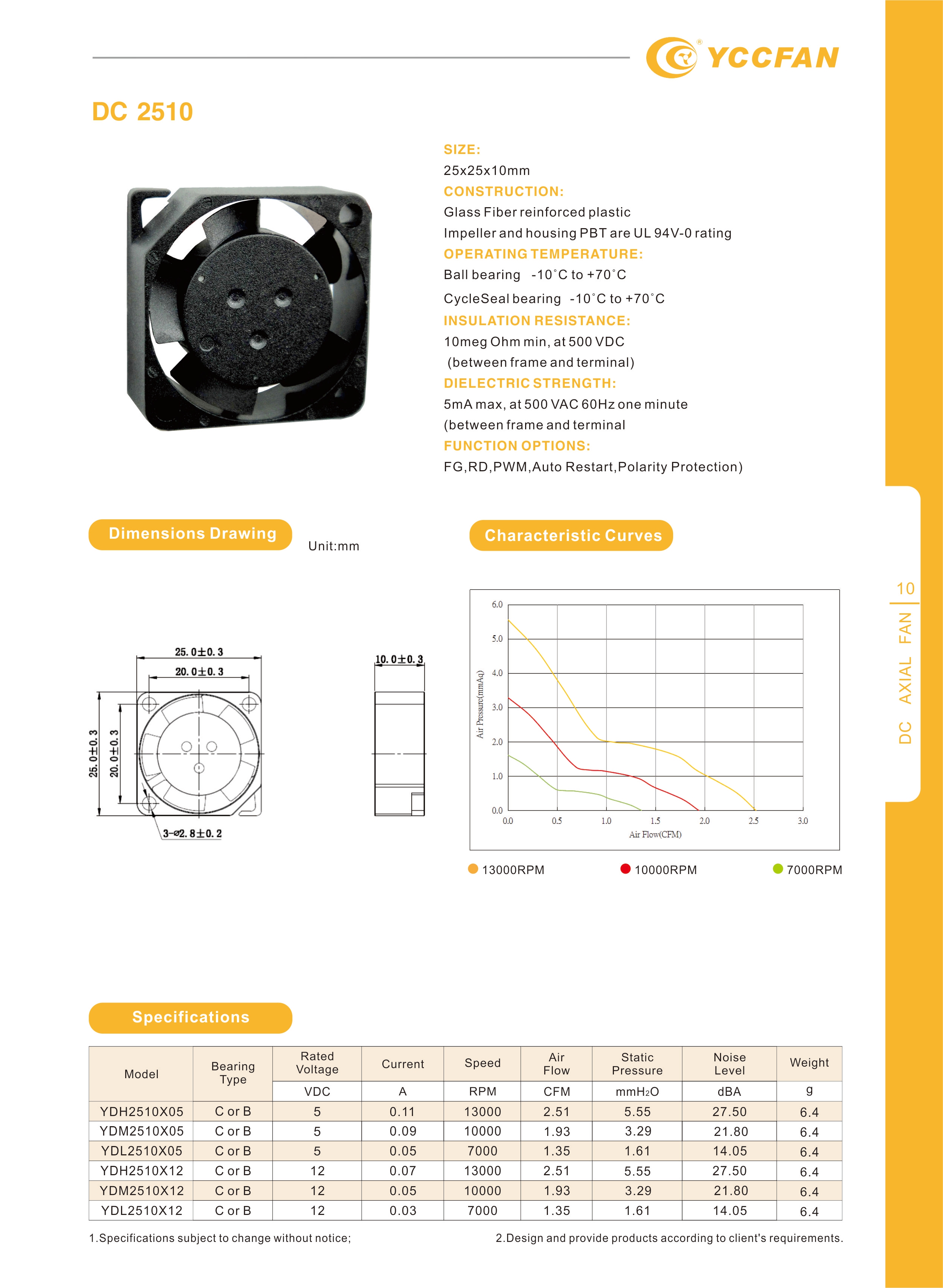

YCCFAN DC2510 Product Overview
Explore how DC2510 combines a 10mm frame, selectable bearings, flame-retardant construction, and control-ready options.
DC2510 is a 25×25×10mm DC cooling fan designed for compact equipment where fan thickness can be slightly increased to gain a more stable structure and bearing flexibility. Its C or B bearing options allow engineers to match different use conditions and project requirements.
The fan uses glass fiber reinforced plastic with PBT UL94V-0 impeller and housing materials. With optional FG, RD, PWM, auto restart, and polarity protection, DC2510 can support both standard cooling and customized fan control needs.

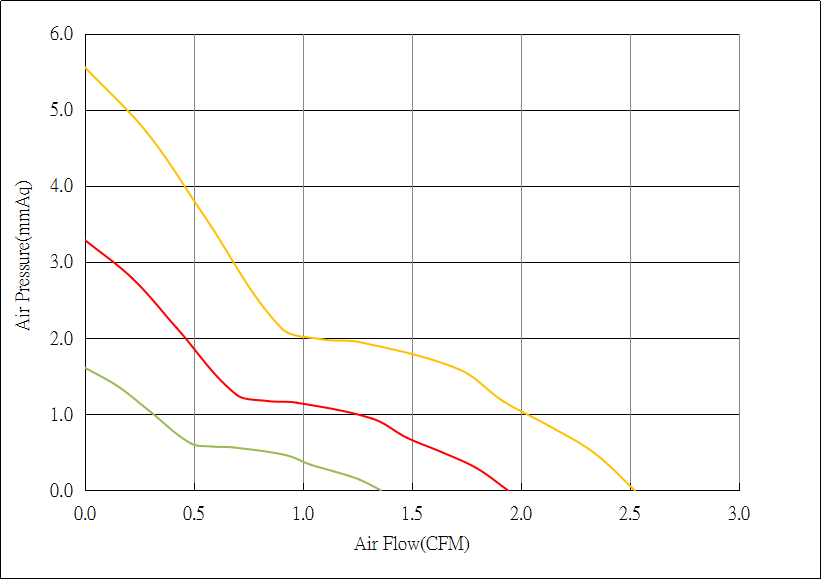

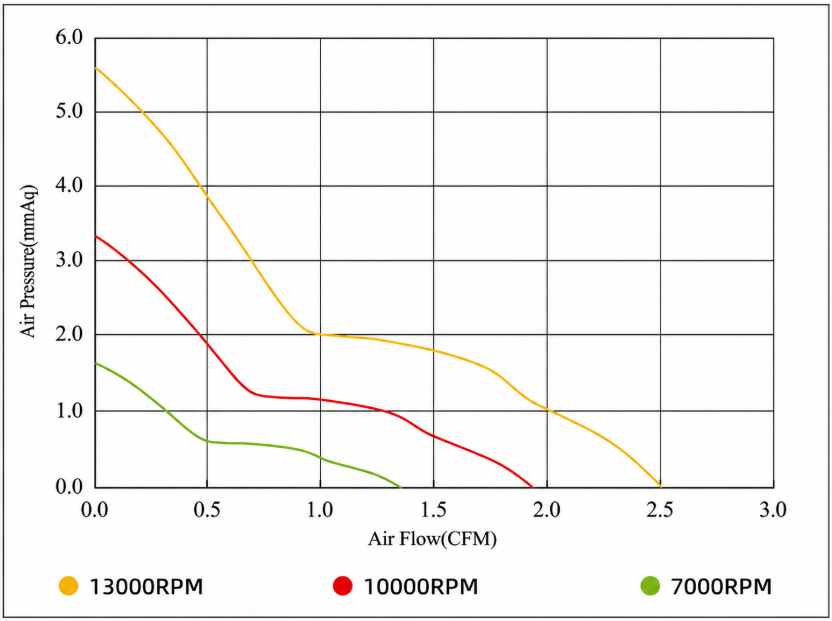

DC2510 Small DC Fan Airflow & Static Pressure Performance Curve
Review the DC2510 P-Q curve to evaluate airflow stability, pressure output, and noise-oriented model choices within a 25mm fan size.
DC2510 DC Fan Applications for Stable 25mm Device Cooling
DC2510 is suitable for compact devices that can accept a 10mm fan depth and need bearing flexibility, steady airflow, and optional fan control within a small 25mm footprint.
Get Cooling Support
Compact Devices Requiring Bearing Selection
DC2510 supports C/B bearing options, making it suitable for compact products where engineers need to balance service life, cost, installation direction, and operating conditions. It is a practical choice when the fan is expected to run more regularly than ultra-light-duty cooling designs.
Small Control Boards and Embedded Controllers
The 25×25×10mm frame allows DC2510 to provide localized airflow around MCU boards, driver circuits, regulators, and compact control units. Optional FG, RD, or PWM functions can also support systems that need fan feedback or speed adjustment.
Noise-Sensitive Compact Electronics
For devices that do not always need maximum cooling output, DC2510 offers mid- and low-speed model choices. This allows designers to maintain steady airflow while reducing unnecessary operating noise in small electronic products.
Mini Power Modules and Driver Units
DC2510 can be used near compact power supplies, LED driver modules, motor driver boards, and other small power sections where heat is generated in a concentrated area.
Compact Communication Devices
DC2510 can support small routers, communication modules, signal terminals, and compact network devices that need stable internal cooling during continuous operation. Its 25mm size and optional control functions make it suitable for communication products with limited internal space and basic fan monitoring needs.
DC 25×25×10mm Cooling Fan Video Showcase
Watch DC2510 in operation to see its 10mm compact frame, smooth running behavior, and balanced airflow for small device cooling.
Watch DC2510 in operation to see its 10mm compact frame, smooth running behavior, and balanced airflow for small device cooling.
FAQs About DC2510 Cooling Fan
A: DC2510 is more suitable when a design allows slightly more installation depth but requires better stability and longer operating life. Compared with ultra-thin 7mm fans, the 10mm frame provides stronger structural support and more balanced airflow performance, making it ideal for devices that run more frequently or under higher load.
A: The C bearing is typically optimized for longer lifespan and continuous operation, while the B bearing is more cost-sensitive and suitable for standard duty use cases. DC2510 dc fan allows engineers to choose based on lifecycle requirements instead of being locked into a single bearing type.
A: Yes. YCCFAN DC2510 supports multiple speed configurations, allowing designers to select between higher airflow (up to 2.51CFM) or lower noise operation depending on system requirements. This makes it suitable for devices that cannot rely solely on maximum-speed cooling.
A: Embedded controllers and power modules generate localized heat in compact areas. The 10mm structure and stable airflow output help maintain consistent thermal distribution around chips and regulators, reducing thermal stress in long-term operation.
A: These functions allow real-time fan monitoring and speed control. With PWM + FG + RD options, DC2510 can integrate into smart systems that require feedback control, fault detection, or dynamic thermal adjustment.
A: DC2510 is better suited for applications that need stable airflow rather than maximum RPM output, such as communication modules, LED drivers, and compact power units. Its balanced design reduces unnecessary noise while maintaining consistent thermal performance.
