DC3007 C05F/C12F 30×30×7mm DC Cooling Fan
A slim 30mm DC fan designed to provide wider airflow coverage in low-height electronic devices without moving to a thicker cooling structure.
DC3007 expands the fan face to 30mm while keeping a slim 7mm depth, making it different from smaller 25mm options. It is suitable for layouts where airflow needs to cover a wider heat area, but the device still cannot accept a 10mm or thicker fan.
Rated Voltage: 5VDC / 12VDC

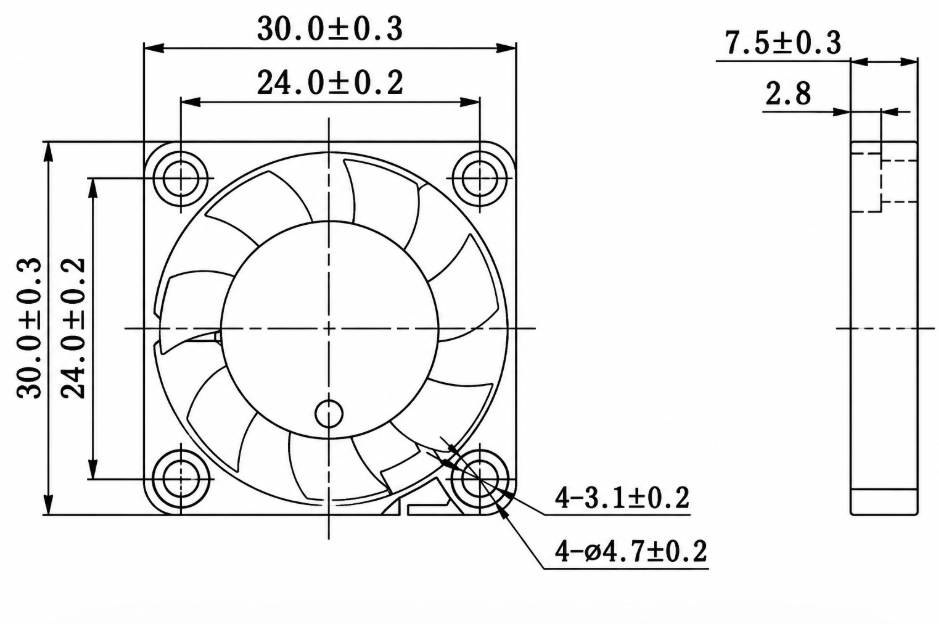

Size: 30×30×7mm
Max Airflow: 3.64CFM / 0.103m³/min
Max Static Pressure: 5.21mmH₂O / 51.1Pa
Rated Speed: Up to 11000RPM
Key Specifications of DC3007 DC Fan
Compare DC3007 airflow, pressure, speed, current, and noise to select a slim 30mm DC fan for wider board-level cooling.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH3007C05F | C | 5 | 0.16 | 11000 | 3.64 | 5.21 | 31.97 | 5.5 |
| YDM3007C05F | C | 5 | 0.09 | 8500 | 2.81 | 3.11 | 26.37 | 5.5 |
| YDL3007C05F | C | 5 | 0.05 | 6000 | 1.98 | 1.55 | 18.81 | 5.5 |
| YDH3007C12F | C | 12 | 0.07 | 11000 | 3.64 | 5.21 | 31.97 | 5.5 |
| YDM3007C12F | C | 12 | 0.05 | 8500 | 2.81 | 3.11 | 26.37 | 5.5 |
| YDL3007C12F | C | 12 | 0.04 | 6000 | 1.98 | 1.55 | 18.81 | 5.5 |
DC3007 Slim 30mm Cooling Fan Advantages
DC3007 is made for low-height designs that need a larger airflow face than 25mm fans, making it useful for broader heat-source coverage.
30mm Wide Airflow Face
The 30×30mm frame gives DC3007 a wider airflow area than 25mm fans while keeping the body only 7mm thick.
Slim Profile for Low-Height Devices
The 7mm depth helps DC3007 fit thin product housings where a 10mm fan would create mechanical interference.
3.64CFM Airflow for Wider Cooling Zones
Up to 3.64CFM airflow allows DC3007 to cool a wider heat zone than smaller compact fans.
Control Features in a Thin 30mm Fan
Optional FG, RD, PWM, auto restart, and polarity protection help DC3007 support feedback, speed control, and protection needs.

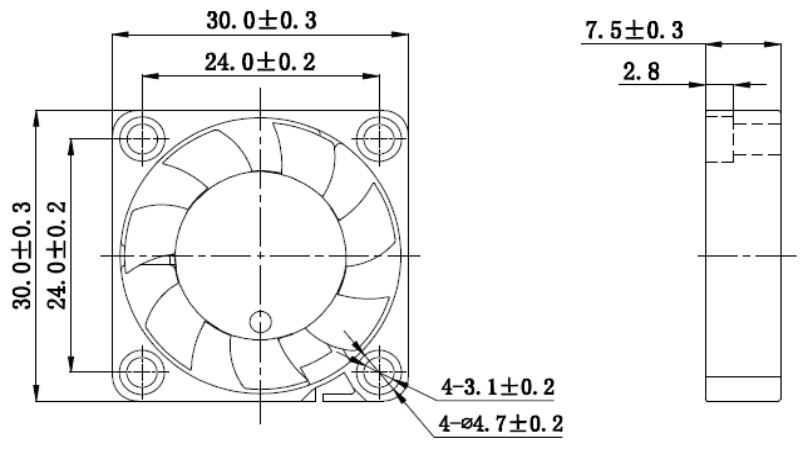

YCCFAN DC3007 Product Overview
See how DC3007 uses a slim 30mm frame to provide wider airflow coverage while keeping material safety and control options available.
DC3007 is a 30×30×7mm DC cooling fan developed for electronic devices that need broader airflow coverage but still have strict height limits. Compared with 25mm fans, its larger frame can cover a wider heat zone; compared with 10mm-thick models, it keeps the installation profile slim.
The fan uses glass fiber reinforced plastic and PBT UL94V-0 materials. Optional FG, RD, PWM, auto restart, and polarity protection make DC3007 suitable for compact systems that require both physical fit and functional flexibility.

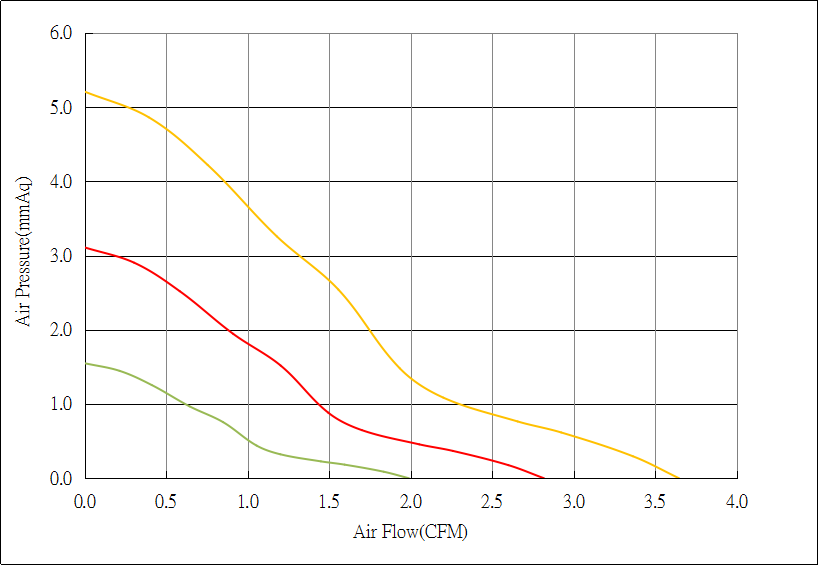

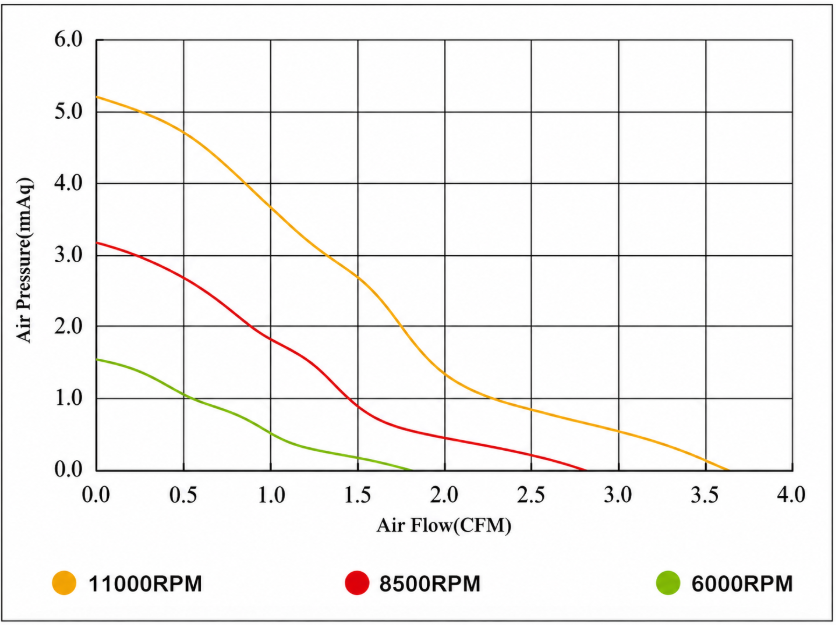

DC3007 DC Cooling Fan Airflow & Static Pressure Performance Curve
Use the DC3007 P-Q curve to evaluate how a slim 30mm fan balances wider airflow coverage with pressure performance under system resistance.
DC3007 Applications for Slim Wide-Area Cooling
Designed for low-height electronic products where heat is spread across a wider area and smaller micro fans cannot provide enough airflow coverage.
Get Cooling Support
Wide PCB Heat Areas
DC3007 is suitable for PCB layouts where heat is spread across a wider section instead of one small hotspot. Its 30mm airflow face can help cover more board-level components while keeping the fan profile slim.
Thin Display or Control Units
With a 7mm slim profile, DC3007 can be used in display modules, compact control panels, and user-interface devices where internal height is limited but active cooling is still needed.
Small Enclosures with Side Venting
The 30mm frame helps move air across shallow internal spaces, making DC3007 suitable for small enclosures with side vents, narrow gaps, or limited vertical clearance.
Compact Electronics Needing Low Profile
DC3007 is a good fit when designers need a larger airflow area than 25mm fans can provide, but cannot increase the fan thickness to a 10mm structure.
Slim Communication and Signal Devices
DC3007 can support thin communication modules, signal terminals, and compact network devices that need wider airflow coverage in a shallow internal layout.
DC 30×30×7mm Cooling Fan Video Showcase
Watch DC3007 running to see its slim 30mm structure, broader airflow face, and compact cooling performance.
Watch DC3007 running to see its slim 30mm structure, broader airflow face, and compact cooling performance.
FAQs About DC3007 Cooling Fan
A: DC3007 dc fan improves cooling performance by expanding the airflow coverage area to 30mm width while keeping only 7mm thickness. This allows it to spread airflow across a wider heat surface instead of concentrating cooling in a narrow zone, which is critical for board-level thermal distribution.
A: DC3007 dc cooler fan is preferred when a device has limited height clearance but requires wider airflow coverage than 25mm fans can provide. It fills the gap between ultra-slim designs and deeper 10mm fan structures.
A: With a 3.64CFM airflow capacity and 30mm airflow face, DC3007 distributes air more evenly across multiple heat sources on a PCB instead of focusing on a single hotspot.
A: Yes. DC3007's slim 7mm profile allows installation in height-restricted housings, while its wider airflow area helps push air laterally through side vents and shallow internal spaces.
A: Display and control systems often generate distributed heat across the surface rather than a single hotspot. DC3007's wide airflow face helps cover these spread-out heat zones while maintaining silent operation in compact enclosures.
A: DC3007 is designed to maximize airflow coverage without increasing fan thickness beyond 7mm. This allows engineers to maintain mechanical clearance while still improving thermal performance in compact systems.
