DC3010 30mm DC Axial Fan
A performance-focused 30mm DC fan with 5V, 12V, and 24V options, built for compact systems that need stronger airflow and higher pressure support.
DC3010 stands out from smaller models by offering a 30×30×10mm frame, higher airflow potential, strong static pressure, and 24V model availability. It is suitable for compact industrial, communication, or electronic systems where a 12V-only small fan may not meet system-level power or pressure requirements.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 30×30×10mm
Max Airflow: 4.56CFM / 0.129m³/min
Max Static Pressure: 8.84mmH₂O / 86.7Pa
Rated Speed: Up to 13000RPM

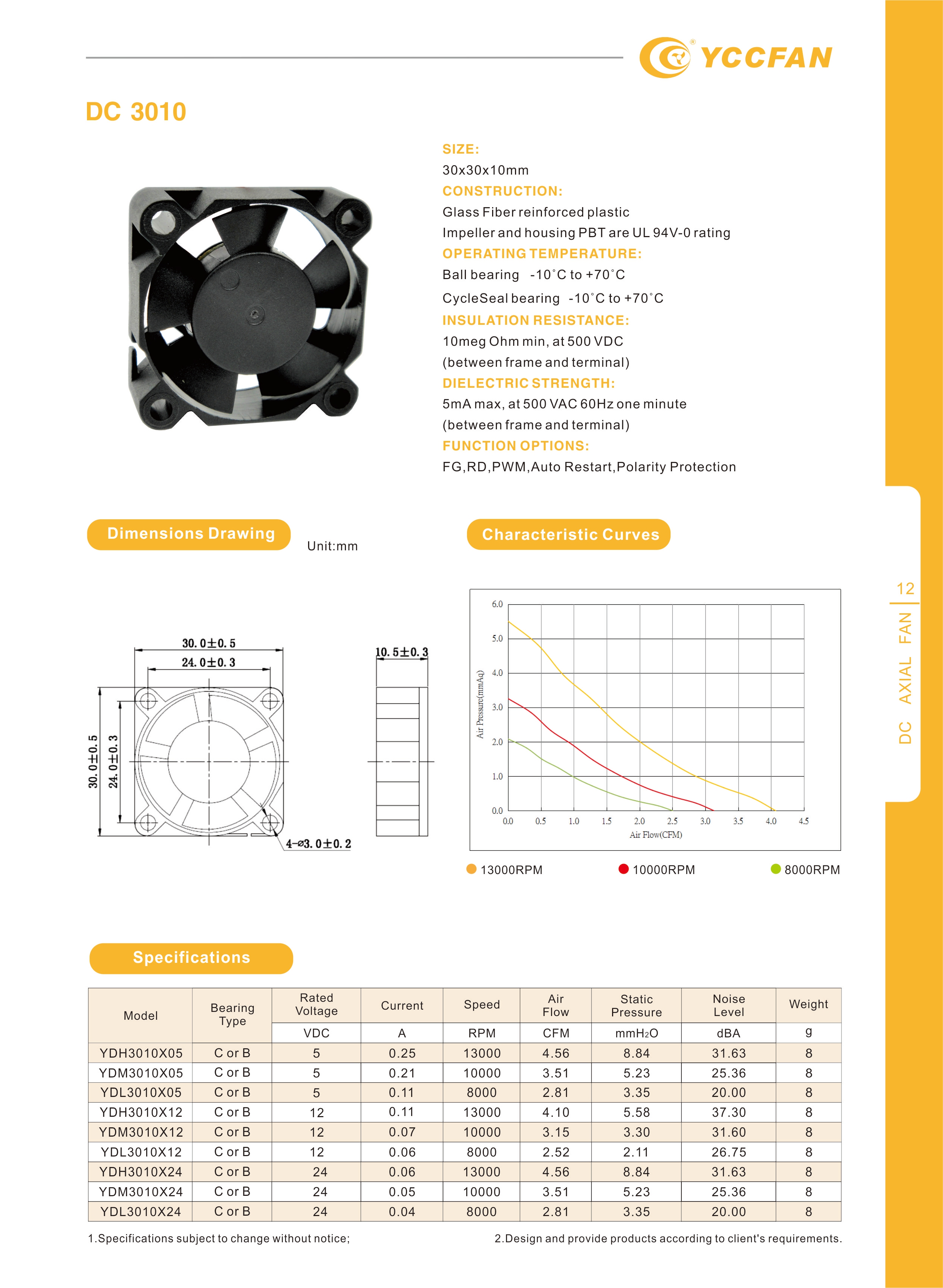

DC3010 30x30x10mm Fan Specifications
Explore the DC3010 30x30x10mm fan specifications, including voltage options, airflow performance, static pressure, speed and noise level to help select the right cooling solution for compact electronic systems.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH3010X05 | C or B | 5 | 0.25 | 13000 | 4.56 | 8.84 | 31.63 | 8 |
| YDM3010X05 | C or B | 5 | 0.21 | 10000 | 3.51 | 5.23 | 25.36 | 8 |
| YDL3010X05 | C or B | 5 | 0.11 | 8000 | 2.81 | 3.35 | 20.00 | 8 |
| YDH3010X12 | C or B | 12 | 0.11 | 13000 | 4.10 | 5.58 | 37.30 | 8 |
| YDM3010X12 | C or B | 12 | 0.07 | 10000 | 3.15 | 3.30 | 31.60 | 8 |
| YDL3010X12 | C or B | 12 | 0.06 | 8000 | 2.52 | 2.11 | 26.75 | 8 |
| YDH3010X24 | C or B | 24 | 0.06 | 13000 | 4.56 | 8.84 | 31.63 | 8 |
| YDM3010X24 | C or B | 24 | 0.05 | 10000 | 3.51 | 5.23 | 25.36 | 8 |
| YDL3010X24 | C or B | 24 | 0.04 | 8000 | 2.81 | 3.35 | 20.00 | 8 |
DC3010 Compact Cooling Fan Advantages
DC3010 is designed for compact systems where a 30mm fan must provide stronger pressure capability, broader voltage compatibility, and control-ready operation.
5V / 12V / 24V Voltage Coverage
Unlike models limited to 5V and 12V, DC3010 includes 24V options, making it easier to match industrial or communication power systems.
Up to 8.84mmH₂O Static Pressure
DC3010 reaches up to 8.84mmH₂O static pressure, giving it stronger airflow-driving capability through dense structures and narrow vents.
4.56CFM Airflow in a 30mm Frame
With up to 4.56CFM airflow, DC3010 can support compact systems where both air volume and installation size matter.
Bearing and Control Flexibility
C/B bearing options plus FG, RD, PWM, auto restart, and polarity protection allow DC3010 to fit performance-oriented OEM cooling designs.

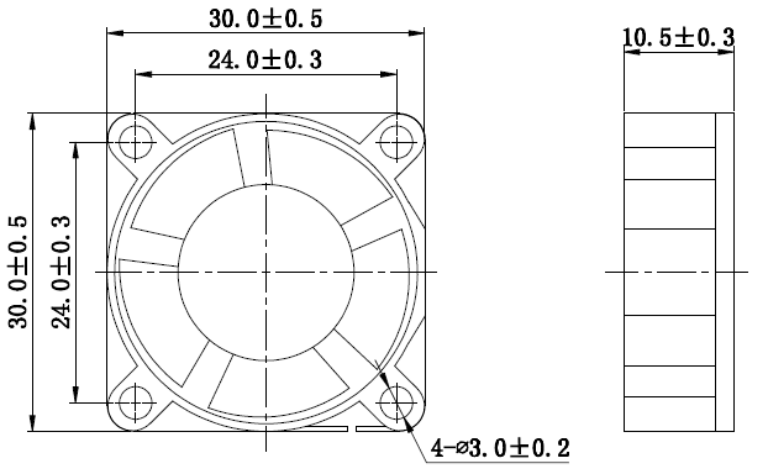

YCCFAN DC3010 Product Overview
Understand how DC3010 combines a 30mm frame, multi-voltage support, strong pressure output, and configurable control features.
DC3010 is a 30×30×10mm DC axial fan designed for compact systems that require more than basic airflow. Its compact frame, stable airflow performance and static pressure capability make it suitable for applications with limited installation space and restricted ventilation paths.
The fan uses glass fiber reinforced plastic with PBT UL94V-0 materials and supports C or B bearing options. Optional FG, RD, PWM, auto restart, and polarity protection help engineers integrate DC3010 into systems requiring fan feedback, speed control, and operation protection.

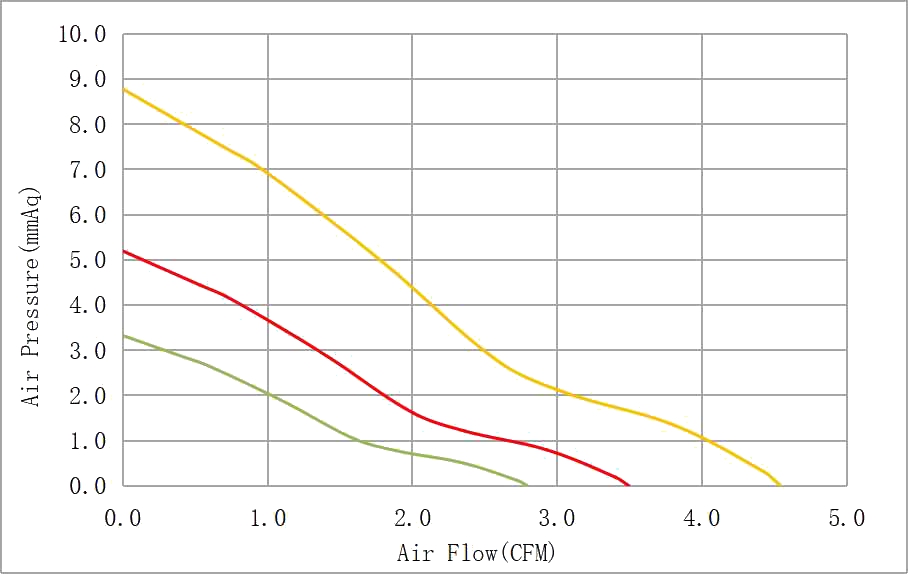

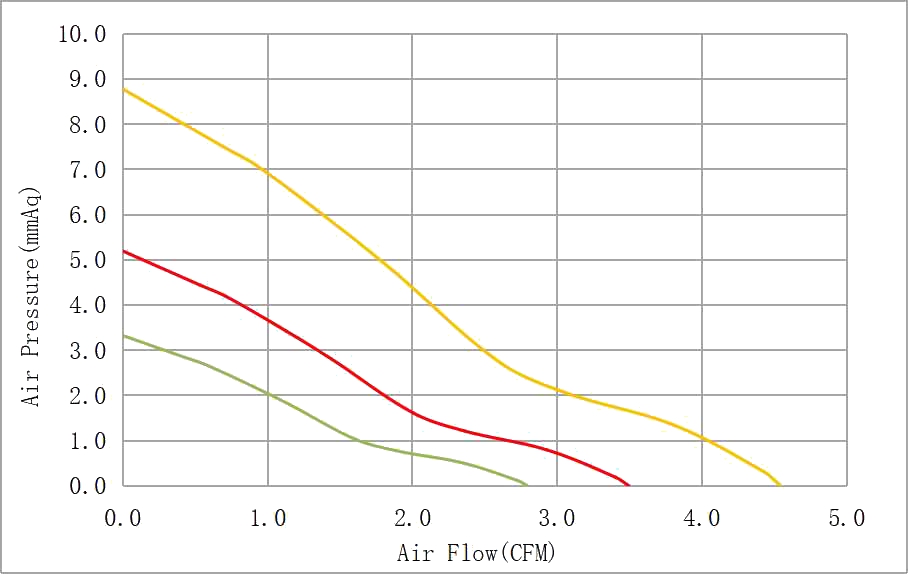

DC3010 Cooling Fan Airflow & Static Pressure Performance Curve
Use the DC3010 P-Q curve to compare how each voltage and speed version handles airflow demand under higher-resistance cooling paths.
DC3010 Applications for Compact Cooling Systems
DC3010 is suitable for compact electronic systems that require stronger static pressure, wider voltage compatibility, and fan control options within limited internal space.
Get Cooling Support
Industrial Control Electronics
DC3010 is suitable for compact industrial control modules, automation controllers, and embedded control units where internal components are densely arranged. Its 24V option makes it easier to match common industrial power systems, while its higher static pressure helps push airflow through restricted internal structures.
Compact Telecom Modules
For compact telecom modules, signal terminals, and small network equipment, DC3010 can support continuous cooling where chips, power areas, and communication components operate in confined spaces. Its pressure performance is useful for devices with dense boards, narrow vents, or limited air outlets.
Dense PCB Cooling Applications
DC3010 is suitable for PCB assemblies with dense components, heat-generating chips, and limited ventilation space. Its airflow and static pressure performance support effective thermal management in compact electronic designs.
Controlled Cooling Devices
DC3010 supports optional PWM, FG, RD, auto restart, and polarity protection functions, making it suitable for products that require speed control, fan status feedback, fault warning, or safer startup protection as part of the thermal design.
Compact Power Supply Units
DC3010 can be used in compact power supplies, DC converters, LED driver modules, and small power electronics where heat is concentrated in a limited area. Its 30mm frame, 24V option, and higher static pressure help support cooling designs that need reliable airflow through tight internal spaces.
DC 30×30×10mm Cooling Fan Video Showcase
Watch DC3010 in operation to see its 30mm frame, strong pressure-oriented airflow, and compact integration performance.
Watch DC3010 in operation to see its 30mm frame, strong pressure-oriented airflow, and compact integration performance.
FAQs About DC3010 DC Fan
A: DC3010 includes a 24V option, which allows it to integrate directly into industrial and telecom power systems without additional voltage conversion. This reduces power loss and improves system-level electrical efficiency in high-load applications.
A: DC3010 is preferred when airflow must pass through dense components, heat sinks, or obstructed PCB layouts. Its higher static pressure (up to 8.84mmH₂O) allows air to overcome stronger internal resistance.
A: Industrial control systems generate continuous heat and often operate in enclosed cabinets. DC3010 provides stable high-pressure airflow, ensuring consistent thermal balance even under long-term operation.
A: In compact or obstructed systems, airflow alone cannot effectively pass through tight spaces. DC3010's high static pressure design ensures air can be forced through restricted channels, making it more effective than high-airflow-only fans.
A: DC3010 supports optional PWM speed control, FG signal output, RD feedback, auto restart, and polarity protection, allowing real-time system monitoring and adaptive cooling control.
A: DC3010 is better suited for systems that require higher thermal load handling, multi-voltage compatibility, and stronger airflow pressure. Compared to slim 7mm fans, it provides significantly improved thermal stability for industrial-grade applications.
