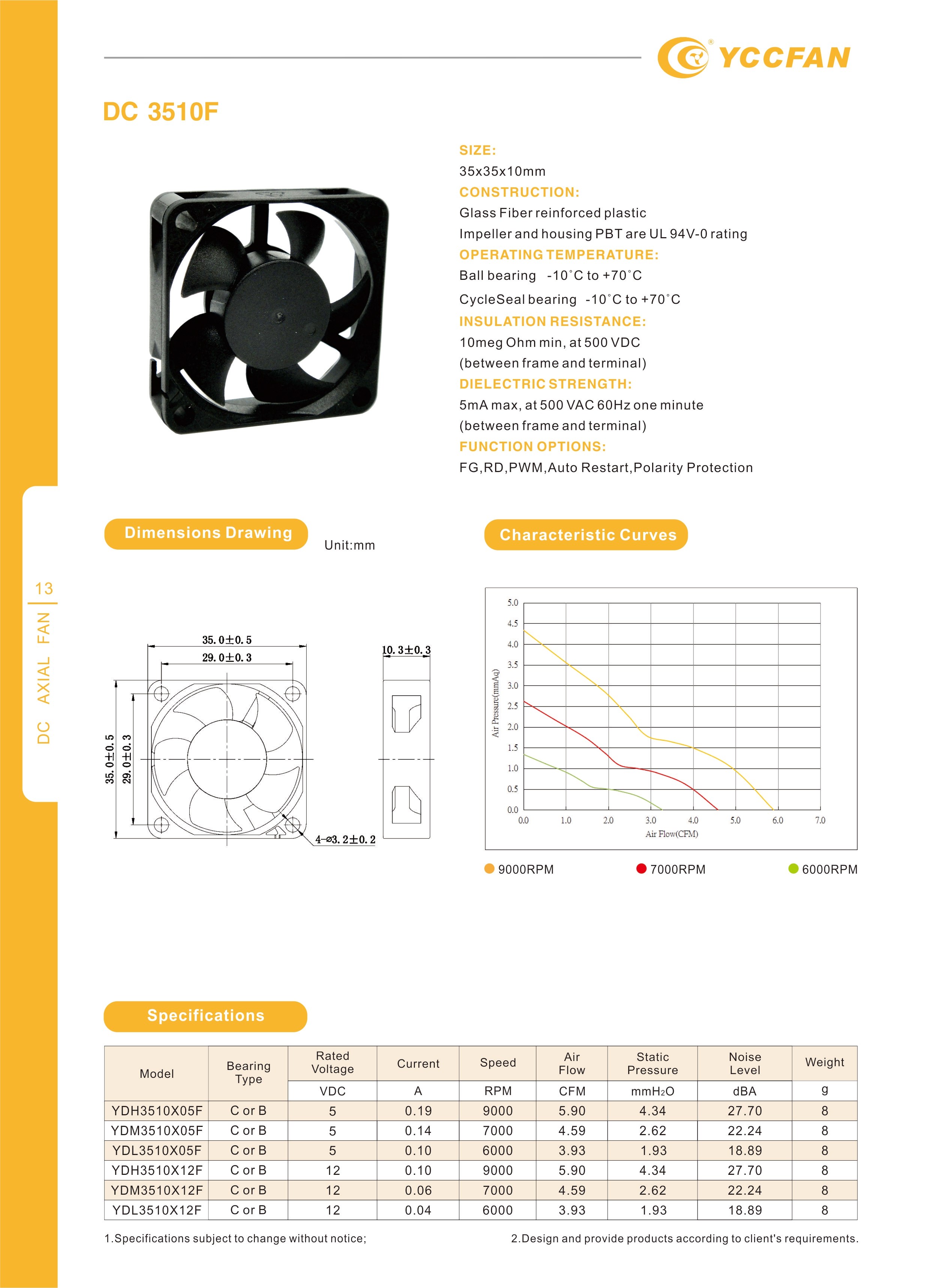

DC3510-F X05F/X12F 35×35×10mm DC Cooling Fan
A 35mm DC fan designed for higher air volume at moderate speed, making it suitable for compact equipment that needs wider airflow coverage with lower pressure demand.
DC3510-F is different from pressure-focused compact fans. Its 35×35×10mm frame provides a larger airflow face and delivers up to 5.90CFM airflow at only 9000RPM, making it more suitable for volume-oriented cooling rather than narrow-duct pressure cooling.
Rated Voltage: 5VDC / 12VDC
Size: 35×35×10mm
Max Airflow: 5.90CFM / 0.167m³/min
Max Static Pressure: 4.34mmH₂O / 42.6Pa
Rated Speed: Up to 9000RPM
Key Specifications of DC3510-F DC Fan
Compare DC3510-F airflow, speed, pressure, noise, and bearing options to choose a 35mm DC fan for wider air-volume cooling.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH3510X05F | C or B | 5 | 0.19 | 9000 | 5.90 | 4.34 | 27.70 | 8 |
| YDM3510X05F | C or B | 5 | 0.14 | 7000 | 4.59 | 2.62 | 22.24 | 8 |
| YDL3510X05F | C or B | 5 | 0.10 | 6000 | 3.93 | 1.93 | 18.89 | 8 |
| YDH3510X12F | C or B | 12 | 0.10 | 9000 | 5.90 | 4.34 | 27.70 | 8 |
| YDM3510X12F | C or B | 12 | 0.06 | 7000 | 4.59 | 2.62 | 22.24 | 8 |
| YDL3510X12F | C or B | 12 | 0.04 | 6000 | 3.93 | 1.93 | 18.89 | 8 |
DC3510-F Air-Volume Cooling Fan Advantages
DC3510-F is built for applications that need more air volume and wider coverage, not just high-pressure airflow through narrow channels.
35mm Frame for Wider Air Coverage
The 35×35mm size gives DC3510-F a larger airflow face than 30mm compact fans, helping cover broader internal heat areas.
5.90CFM Airflow at Moderate Speed
DC3510-F reaches 5.90CFM airflow at 9000RPM, making it more airflow-efficient for applications where extreme speed is not preferred.
Lower Pressure, Wider Cooling Focus
With 4.34mmH₂O static pressure, DC3510-F is better suited for open or semi-open airflow paths than highly blocked ducts.
Bearing and Function Options
C/B bearing options and FG, RD, PWM, auto restart, and polarity protection allow DC3510-F to be adapted to customized device requirements.

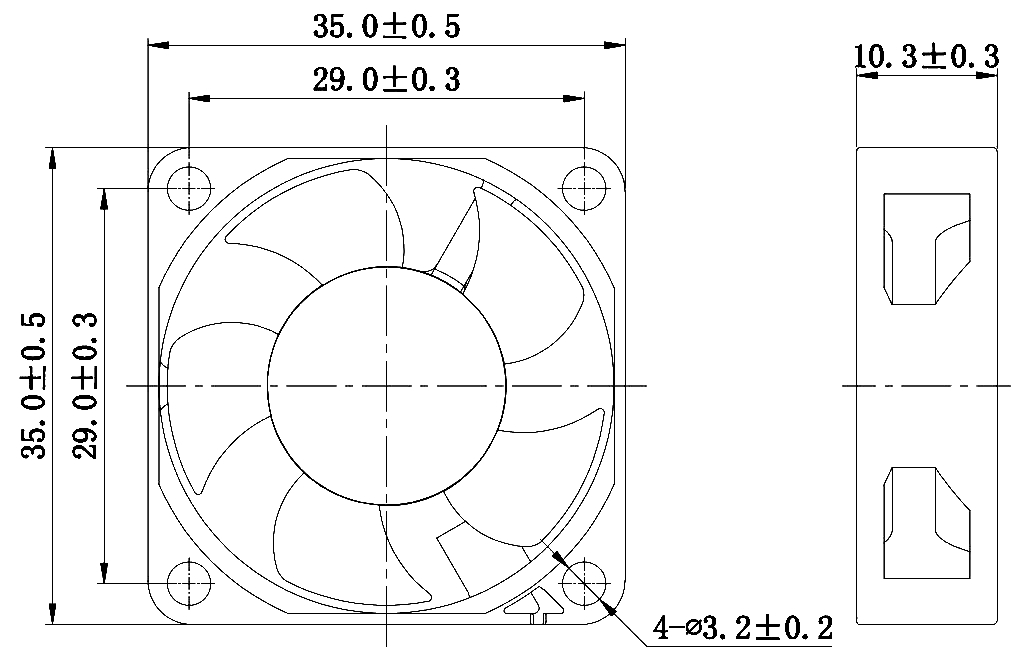

YCCFAN DC3510-F Product Overview
Learn how DC3510-F uses a larger 35mm frame to deliver higher air volume for broader cooling zones.
DC3510-F is a 35×35×10mm DC cooling fan developed for compact equipment that needs more air volume across a wider internal area. Compared with smaller high-pressure fans, it is more suitable for airflow coverage where the internal path is not heavily restricted.
The fan uses glass fiber reinforced plastic and PBT UL94V-0 impeller and housing materials. With C or B bearing options and optional control/protection functions, DC3510-F can support both standard cooling layouts and customized fan projects.

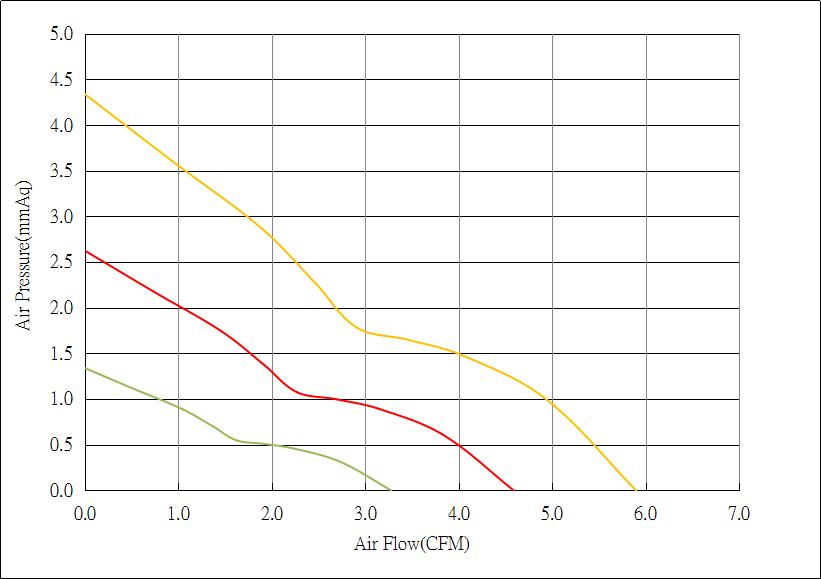

DC3510-F DC Cooling Fan Airflow & Static Pressure Performance Curve
Use the DC3510-F DC Fan P-Q curve to evaluate air-volume delivery across wider cooling zones and moderate-resistance airflow paths.
DC3510-F Applications for Wider Air-Volume Cooling
DC3510-F is ideal for compact devices where heat is distributed across a wider internal area and airflow coverage is more important than extreme static pressure.
Get Cooling Support
Wide Internal Heat Zones
DC3510-F is suitable for devices where multiple components generate heat across a wider internal section, rather than one concentrated hotspot. Its 35mm frame helps spread airflow over a broader area, making it useful for cooling several nearby components at the same time.
Semi-Open Equipment Cooling
DC3510-F works well in enclosures with less restrictive vents, open internal paths, or larger air exchange areas. Its airflow-focused design helps move more air through semi-open structures where the main cooling goal is air circulation rather than forcing air through narrow ducts.
Compact Power and Control Boxes
The 35mm fan size can move more air across compact power sections, control boxes, relay modules, and small electrical enclosures. With high airflow at moderate speed, DC3510-F can support stable cooling without relying on extremely high RPM operation.
Noise-Conscious Airflow Applications
Because DC3510-F provides up to 5.90CFM airflow at 9000RPM, it can be used where higher air volume is needed but ultra-high-speed fan noise is not preferred. This makes it suitable for compact equipment that needs practical airflow with more controlled acoustic performance.
Small Network and Communication Devices
DC3510-F can be used in small network terminals, communication modules, and compact signal equipment where heat is spread across chips, power areas, and interface components. Its wider airflow coverage helps support continuous operation in enclosures with moderate airflow resistance.
DC 35×35×10mm Cooling Fan Video Showcase
Watch DC3510-F in operation to see its wider 35mm airflow face, moderate-speed performance, and air-volume cooling effect.
Watch DC3510-F in operation to see its wider 35mm airflow face, moderate-speed performance, and air-volume cooling effect.
FAQs About DC3510-F DC Fan
A: DC3510-F should be selected when the system requires wide-area airflow coverage rather than forcing air through narrow channels. With up to 5.90CFM airflow at only 9000RPM, it is more suitable for open or semi-open structures where air circulation is the main cooling method.
A: DC3510-F is designed with a low-to-medium pressure profile (4.34mmH₂O) and optimized for air volume delivery. This makes it more effective in distributing heat across multiple components instead of pushing air through restricted paths.
A: Instead of relying on extreme RPM, DC3510-F uses a 35×35mm enlarged airflow face combined with optimized blade geometry. This allows it to achieve high airflow efficiency while maintaining moderate speed and lower mechanical stress.
A: DC3510-F performs better in systems where heat is spread across a broader internal area instead of concentrated hotspots. The larger 35mm frame helps cover multiple components simultaneously in compact enclosures.
A: Yes. Because DC3510-F achieves high airflow at only 9000RPM, it avoids the need for high-speed operation that typically increases noise. This makes it suitable for noise-sensitive compact electronics.
A: DC3510-F cooling fan is optimized for air-volume cooling, not high-pressure duct penetration. In tightly blocked or high-resistance airflow systems, higher static pressure fans (like DC3010) perform better.
