DC2006 C05F/C12 Micro Fan
A 20*20*6mm micro DC fan with 5VDC and 12VDC options, built to provide stable airflow and efficient localized cooling for compact electronic devices.
DC2006 is a compact 20*20*6mm micro DC cooling fan designed to deliver stable, low-noise airflow for space-limited electronic devices, helping improve heat dissipation in small modules, control boards, and other compact cooling applications.
Rated Voltage: 5VDC / 12VDC

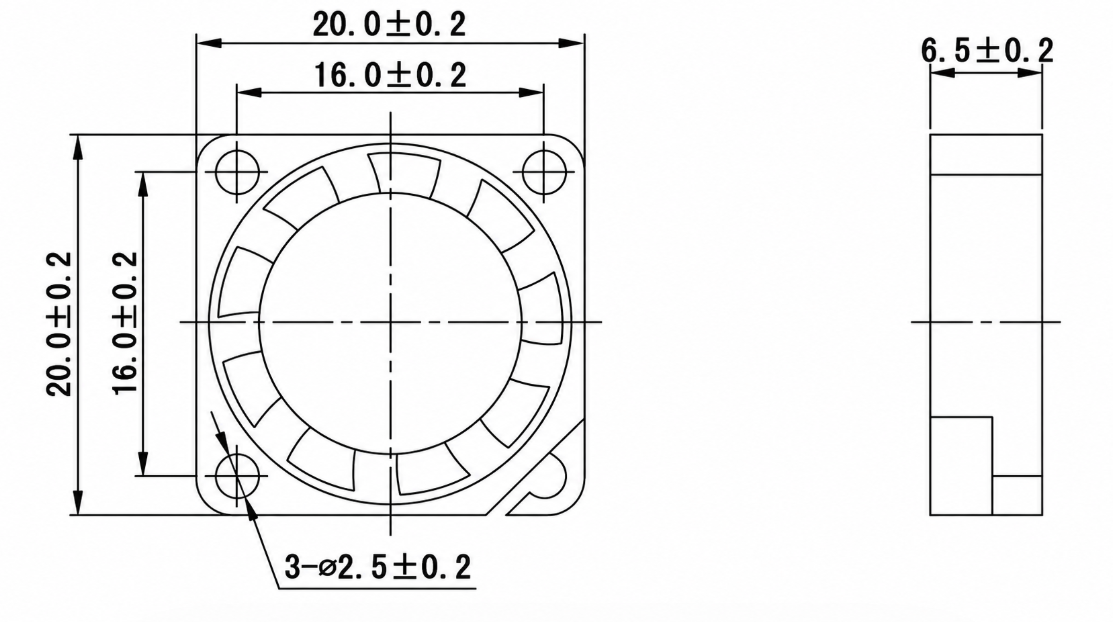

Size: 20*20*6mm
Max Airflow: 0.82CFM / 0.023m³/min
Max Static Pressure: 35.3Pa / 0.14inchH₂O
Rated Speed: Up to 15000RPM

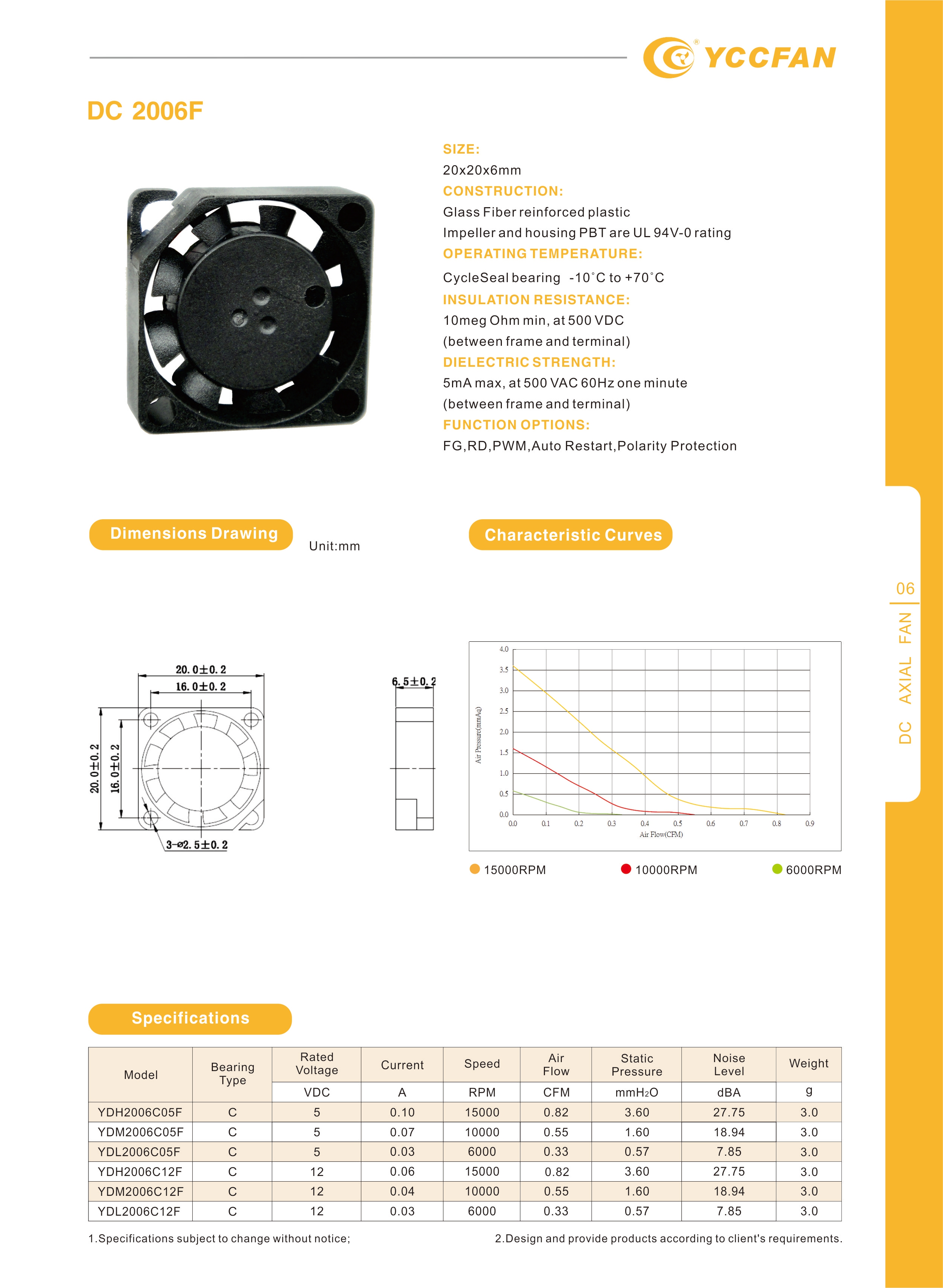

Key Specifications of DC2006 DC Fan
Review DC2006 fan specifications across available models, including speed, airflow, static pressure, noise, current, and weight, to choose the right version for compact cooling designs.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH2006C05F | C | 5 | 0.10 | 15000 | 0.82 | 3.60 | 27.75 | 3.0 |
| YDM2006C05F | C | 5 | 0.07 | 10000 | 0.55 | 1.60 | 18.94 | 3.0 |
| YDL2006C05F | C | 5 | 0.03 | 6000 | 0.33 | 0.57 | 7.85 | 3.0 |
| YDH2006C12F | C | 12 | 0.06 | 15000 | 0.82 | 3.60 | 27.75 | 3.0 |
| YDM2006C12F | C | 12 | 0.04 | 10000 | 0.55 | 1.60 | 18.94 | 3.0 |
| YDL2006C12F | C | 12 | 0.03 | 6000 | 0.33 | 0.57 | 7.85 | 3.0 |
DC2006 DC Cooling Fan Advantages
Engineered for thin, space-limited electronics, DC2006 combines a 6mm slim profile, selectable speeds, effective airflow, and high static pressure for precise micro cooling.
6mm Ultra-thin Profile
With a 6mm slim profile, DC2006 fits thin devices and narrow spaces, providing localized airflow with minimal added height.
Three Speed Options
DC2006 offers 6000, 10000, and 15000RPM options to balance quiet operation and stronger cooling. Other speed can also customized
Up to 0.82CFM Airflow
Despite its 20mm micro size, DC2006 can deliver up to 0.82CFM airflow, helping create effective cooling in limited internal spaces.
High Static Pressure
With static pressure up to 3.60mm H₂O, DC2006 is suitable for narrow air paths, dense components, and restricted cooling spaces.

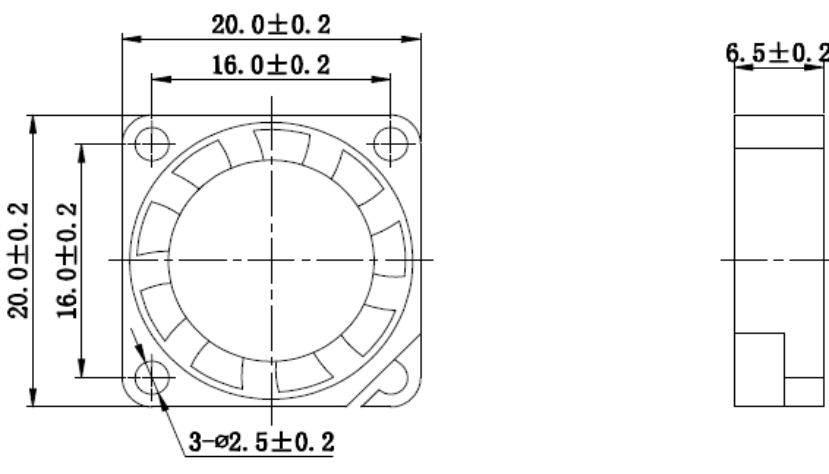

YCCFAN DC2006 Product Overview
DC2006 is a micro DC cooling fan designed for compact electronic systems that need dependable thermal support within limited installation space. It offers 5V and 12V options with different speed levels, making it easier to match various circuit designs, heat loads, and operating noise requirements.
Built with PBT UL94V-0 flame-retardant frame and blade materials, DC2006 provides an added advantage for electronic products where material safety and internal component protection are important. Its small form factor makes it suitable for modules, control boards, portable devices, and other space-constrained applications that require stable localized cooling.

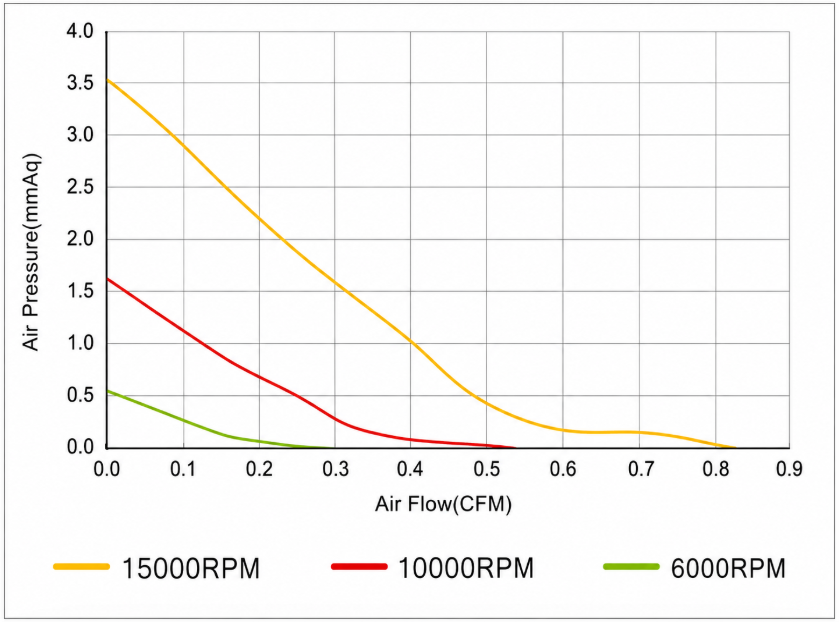

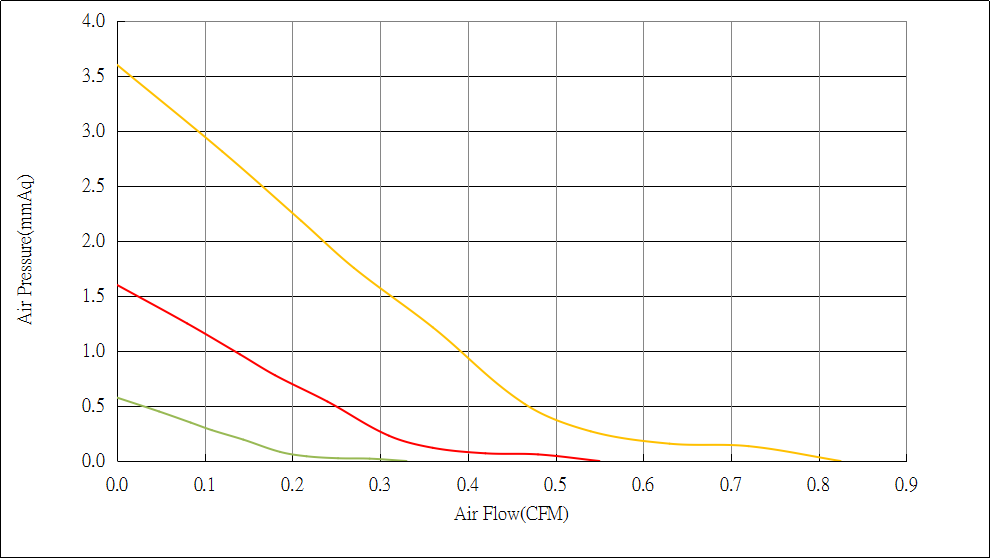

DC2006 DC Fan Airflow & Static Pressure Performance
Compare DC2006 airflow and static pressure performance across different speed options to understand how each version supports compact cooling designs and restricted internal airflow paths.
Where DC2006 Micro Fan Can Be Used
Supporting localized cooling in compact modules, control boards, portable devices, communication equipment, and precision electronic systems.
Get Cooling Support
Compact Electronic Modules
DC2006 is suitable for compact electronic modules that have limited internal space but still require active airflow. It can help direct cooling air around heat-generating components such as chips, sensors, small power parts, or miniature control units.
Control Boards & PCBs
For control boards and densely arranged PCBs, DC2006 can provide localized airflow to reduce heat buildup around key components. Its small size makes it easier to integrate near chips, drivers, power ICs, and other board-level heat sources.
Mini Communication Equipment
DC2006 can be used in compact routers, communication modules, network terminals, and small signal devices. It helps cool chips, power areas, and communication components that operate continuously in confined enclosures.
Precision & Medical Electronics
For precision instruments and small medical electronics, DC2006 offers low-noise speed options while supporting stable internal airflow. It is suitable for equipment that requires quiet operation, compact installation, and reliable cooling for sensitive electronic parts.
Portable Devices
With its 20*20*6mm micro structure and lightweight design, DC2006 is suitable for portable devices where space, weight, and noise are all important. It can support internal cooling without taking up much installation room.
DC 20*20*6mm Cooling Fan Video Showcase
See how the DC2006 micro fan operates in a compact form, supporting stable airflow for small electronic cooling designs.
DC2006 is suitable for compact electronic modules that have limited internal space but still require active airflow. It can help direct cooling air around heat-generating components such as chips, sensors, small power parts, or miniature control units.
DC2006 is suitable for compact electronic modules that have limited internal space but still require active airflow. It can help direct cooling air around heat-generating components such as chips, sensors, small power parts, or miniature control units.
DC2006 is suitable for compact electronic modules that have limited internal space but still require active airflow. It can help direct cooling air around heat-generating components such as chips, sensors, small power parts, or miniature control units.
FAQs About DC2006 DC Cooling Fan
A: DC2006 is designed for compact electronic devices that need localized airflow in limited installation spaces, such as small modules, control boards, portable devices, communication equipment, and precision electronics.
A: Yes. With its 20×20×6mm structure, DC2006 is suitable for 20mm micro fan applications where larger cooling fans cannot fit, especially in thin devices and narrow internal spaces.
A: DC2006 is available in 5VDC and 12VDC versions, with 6000RPM, 10000RPM, and 15000RPM speed options to match different power systems, airflow needs, and noise requirements.
A: Yes. DC2006 can be used as a mini DC cooling fan for compact electronics, helping provide active airflow near chips, power components, sensors, and other heat-generating parts.
A: DC2006 provides up to 0.82CFM airflow and 3.60mmH₂O static pressure, making it suitable for compact layouts, narrow airflow paths, and restricted internal cooling spaces.
A: Yes. The low-speed version offers noise levels as low as 7.85dBA, making it a quieter option for compact devices that require stable cooling with lower operating noise.
